  • Window mounted intake/exhaust (bidirectional) fan

    窗口式輸入/輸出(雙向)扇

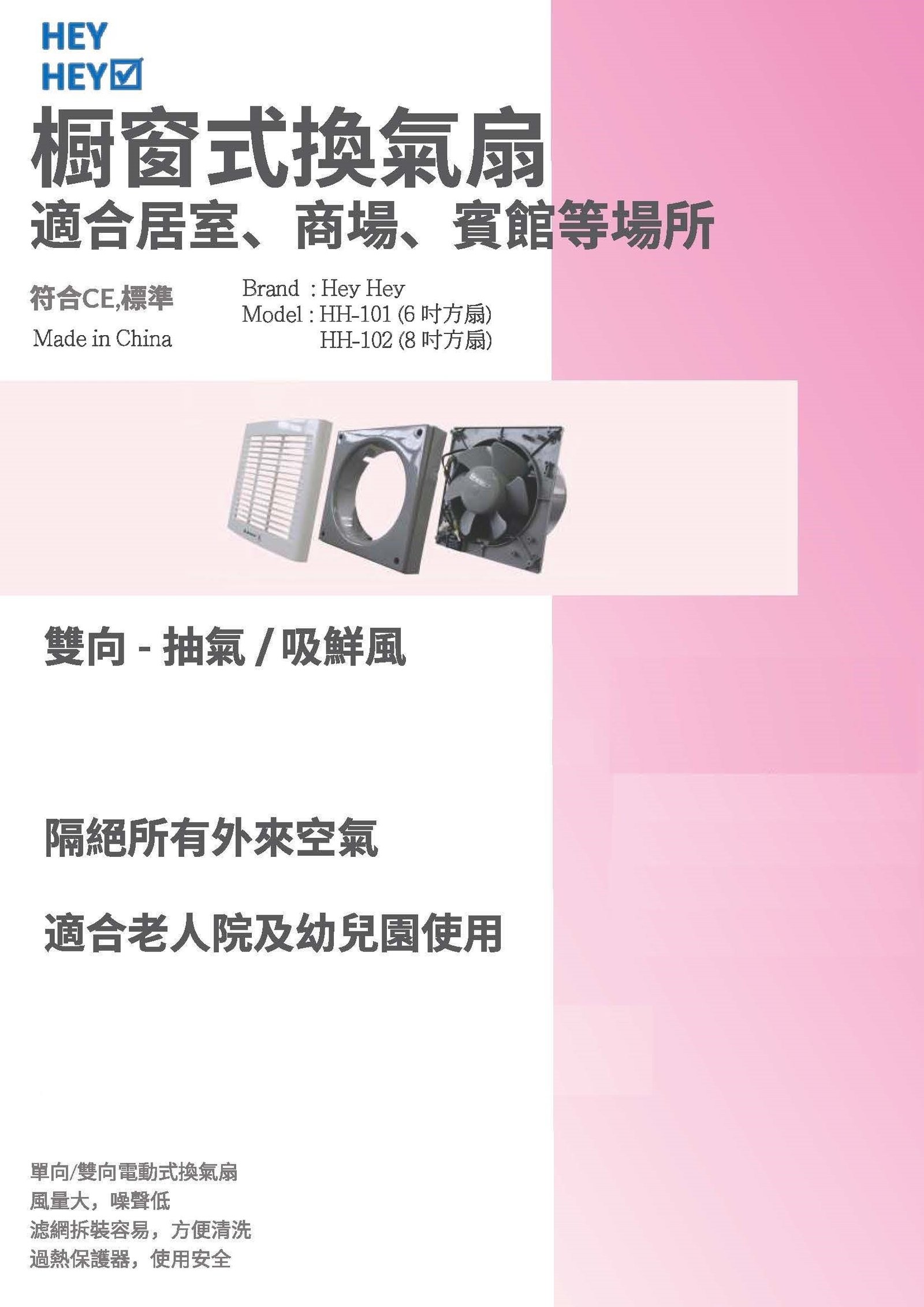

    Fan1
    窗口扇1

    Model:HH-101

    View more

    HH-101,102

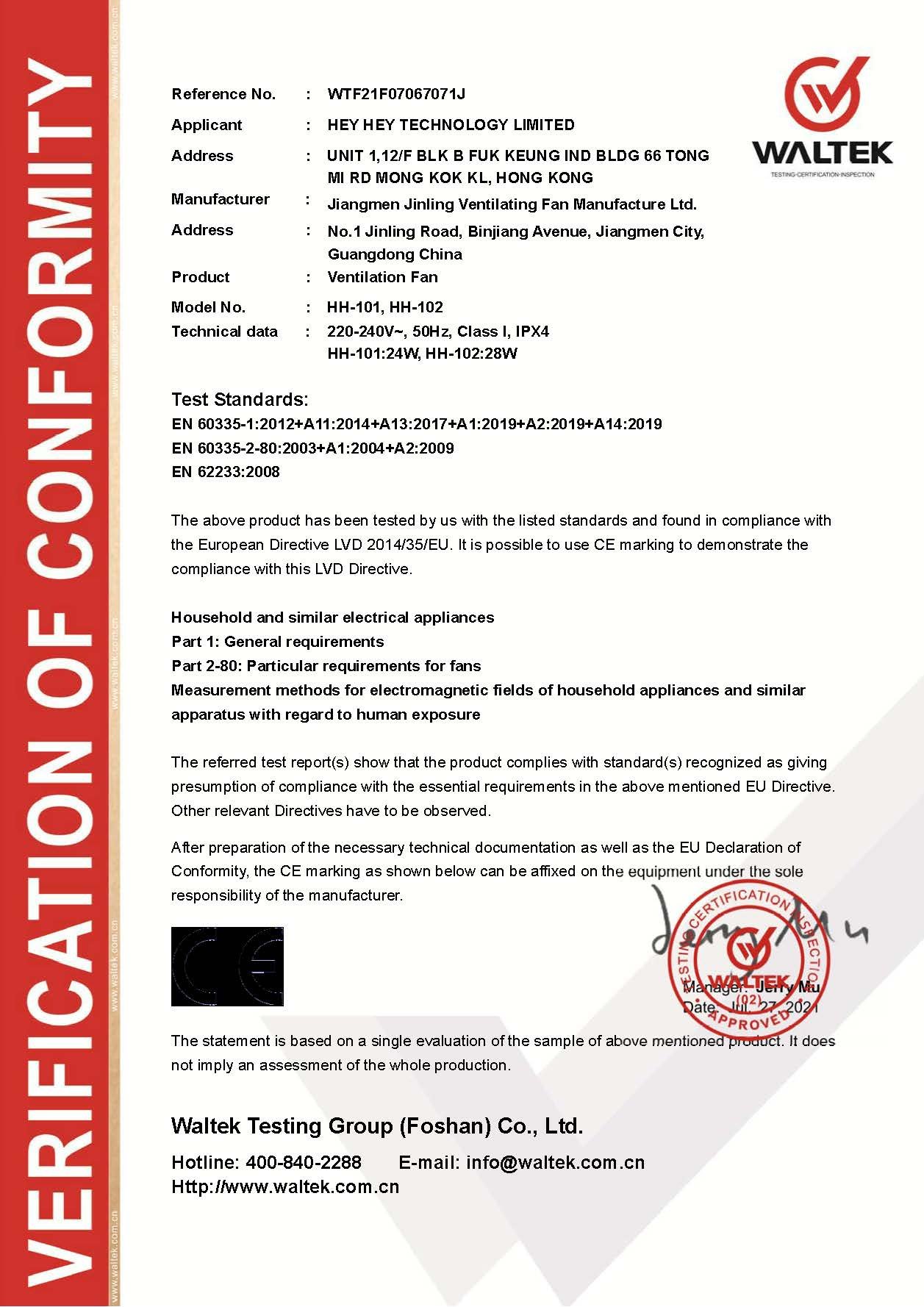

    歐盟認證CE

    歐盟認證CE證書
    HH101CECert.pdf

    View more

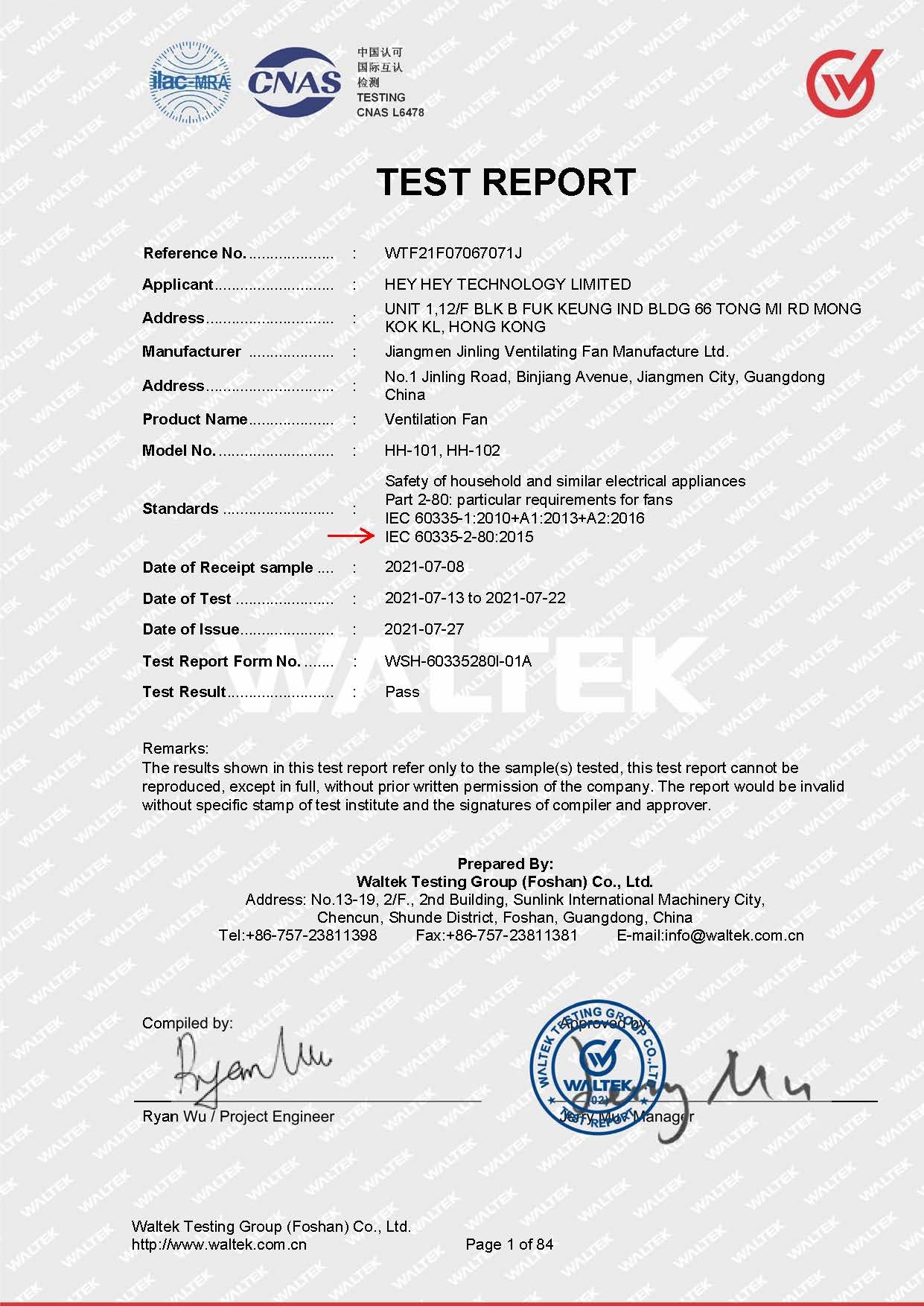

    HH-101,102
    歐盟認證CE Report

    Comply with IEC 60335-2-80 HH101CECertReport.pdf

    View more

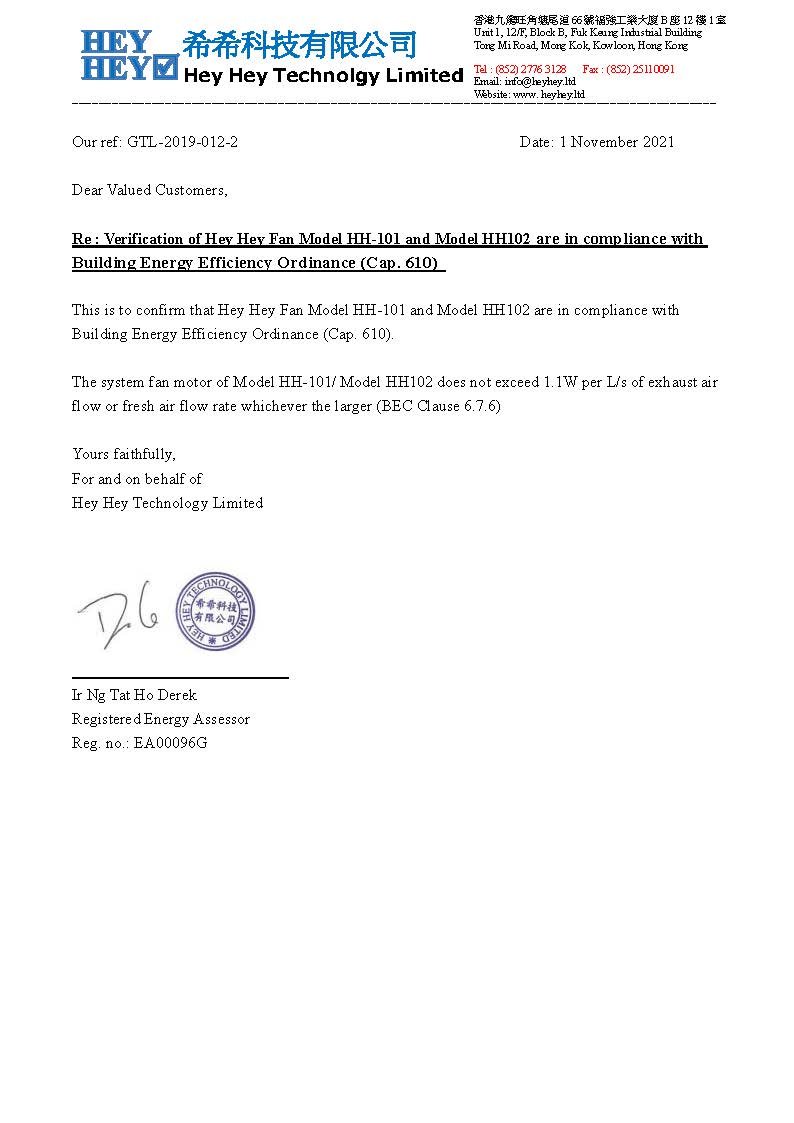

    BEC Compliance Letter
    能源效益符合證明

    Comply with BEC Ordinance View more

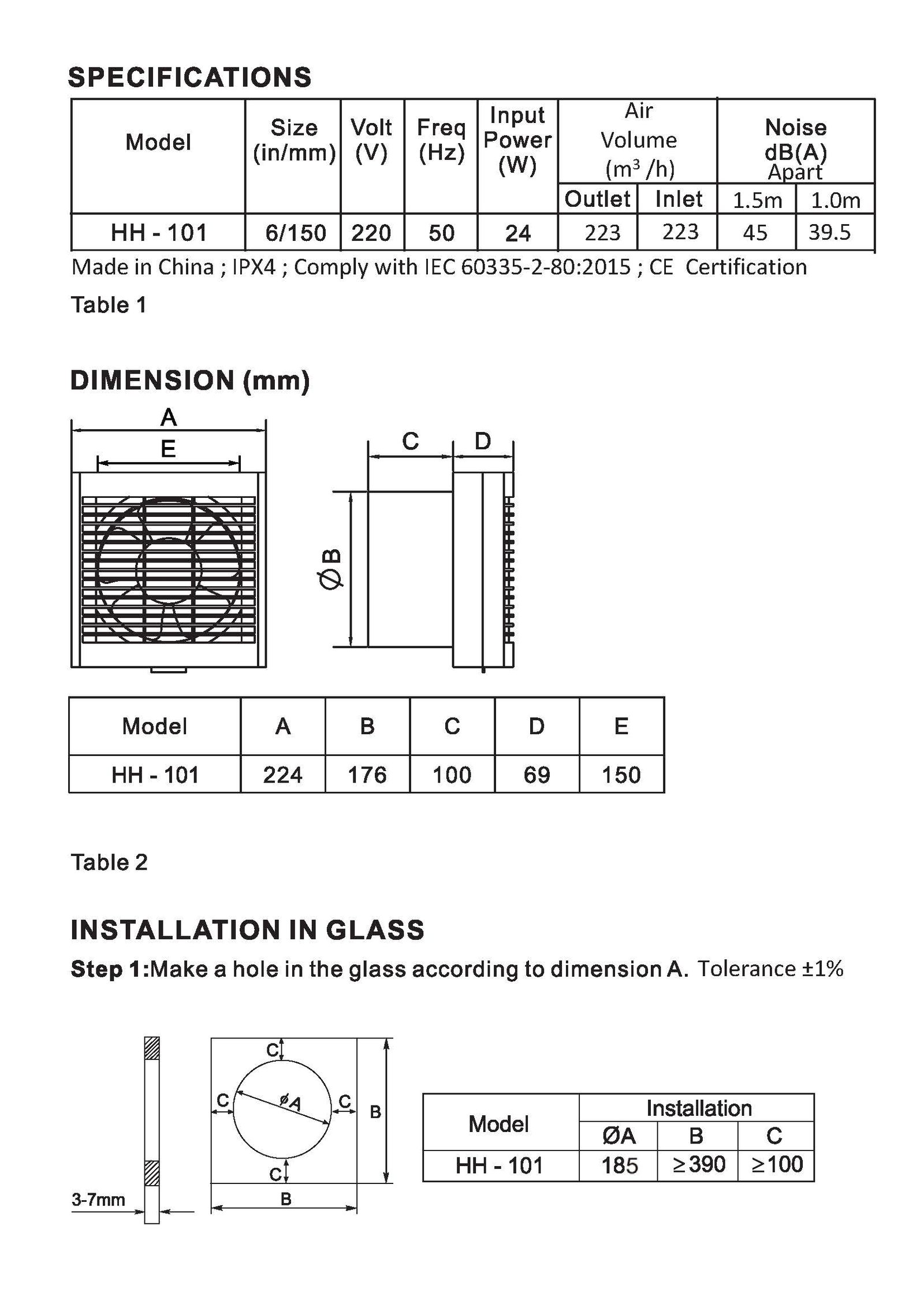

    HH-101
    (6"/150mm)
    Spec_Dimension

    HH101CatalogChi.pdf中文
    HH101CatalogEng.pdf英文

    View more

    HH-101
    Wiring

    HH101CatalogChi.pdf中文
    HH101CatalogEng.pdf英文

    View more

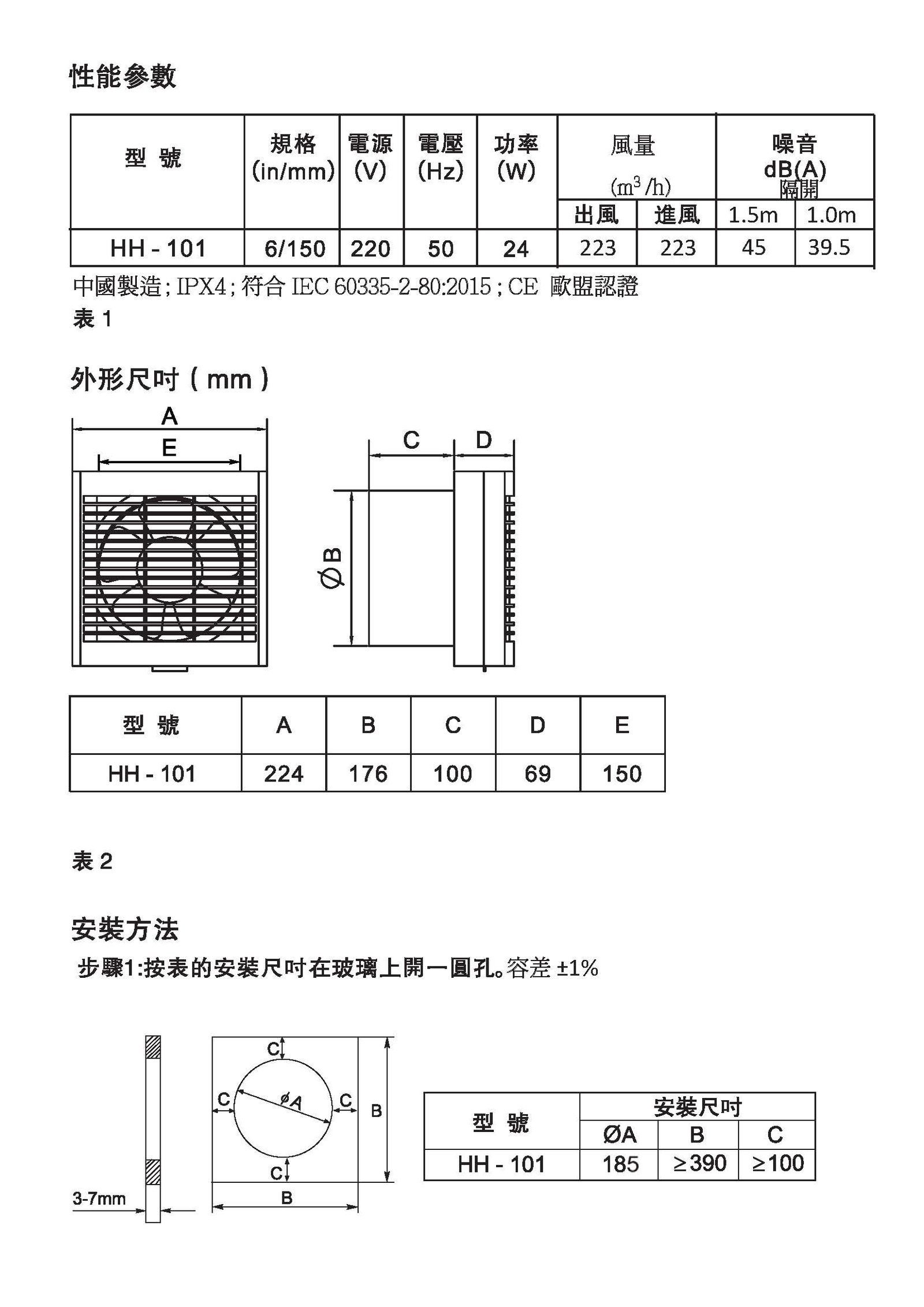

    HH-101
    (6"/150mm)
    規格及長度

    HH101CatalogChi.pdf中文
    HH101CatalogEng.pdf英文

    View more

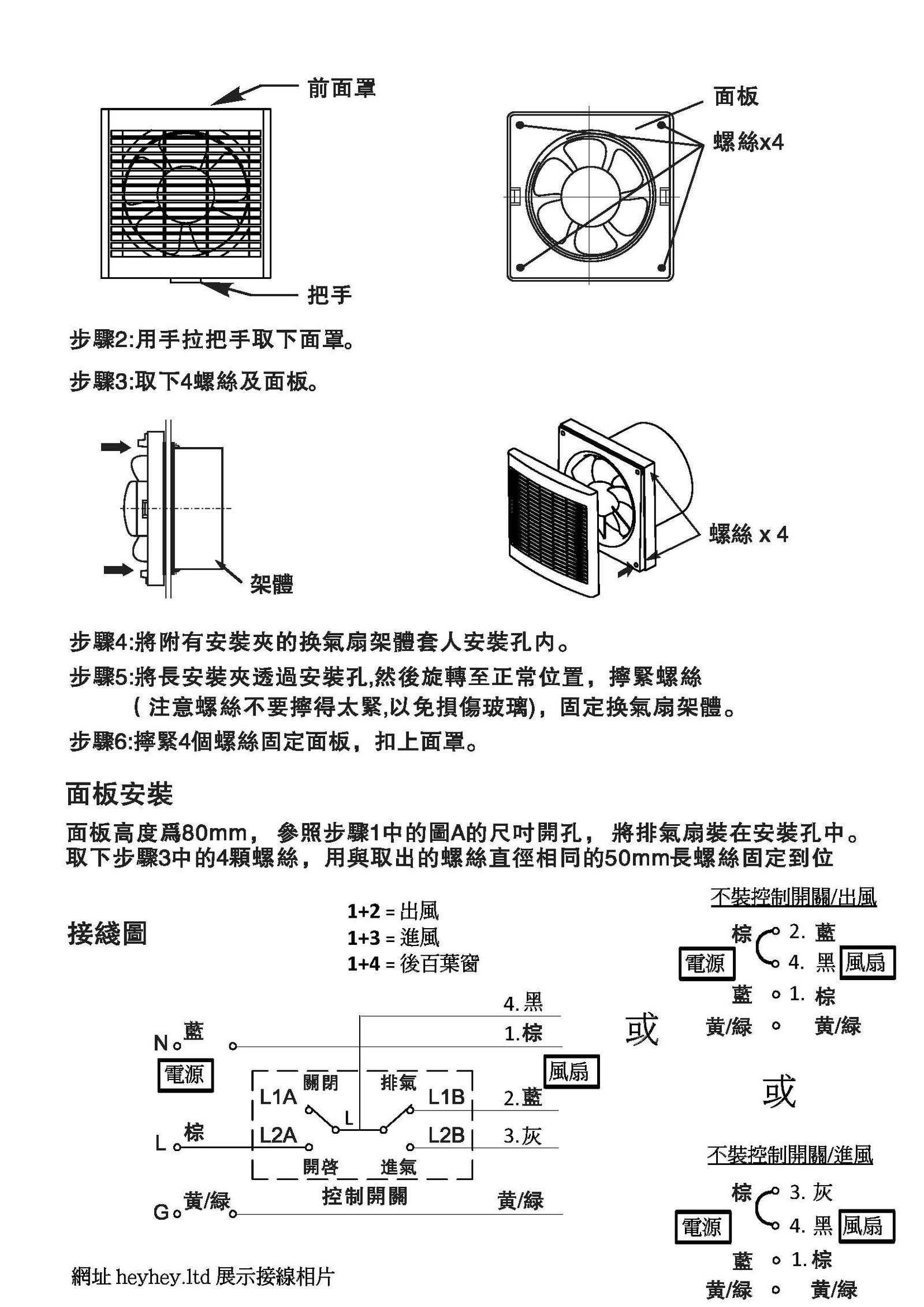

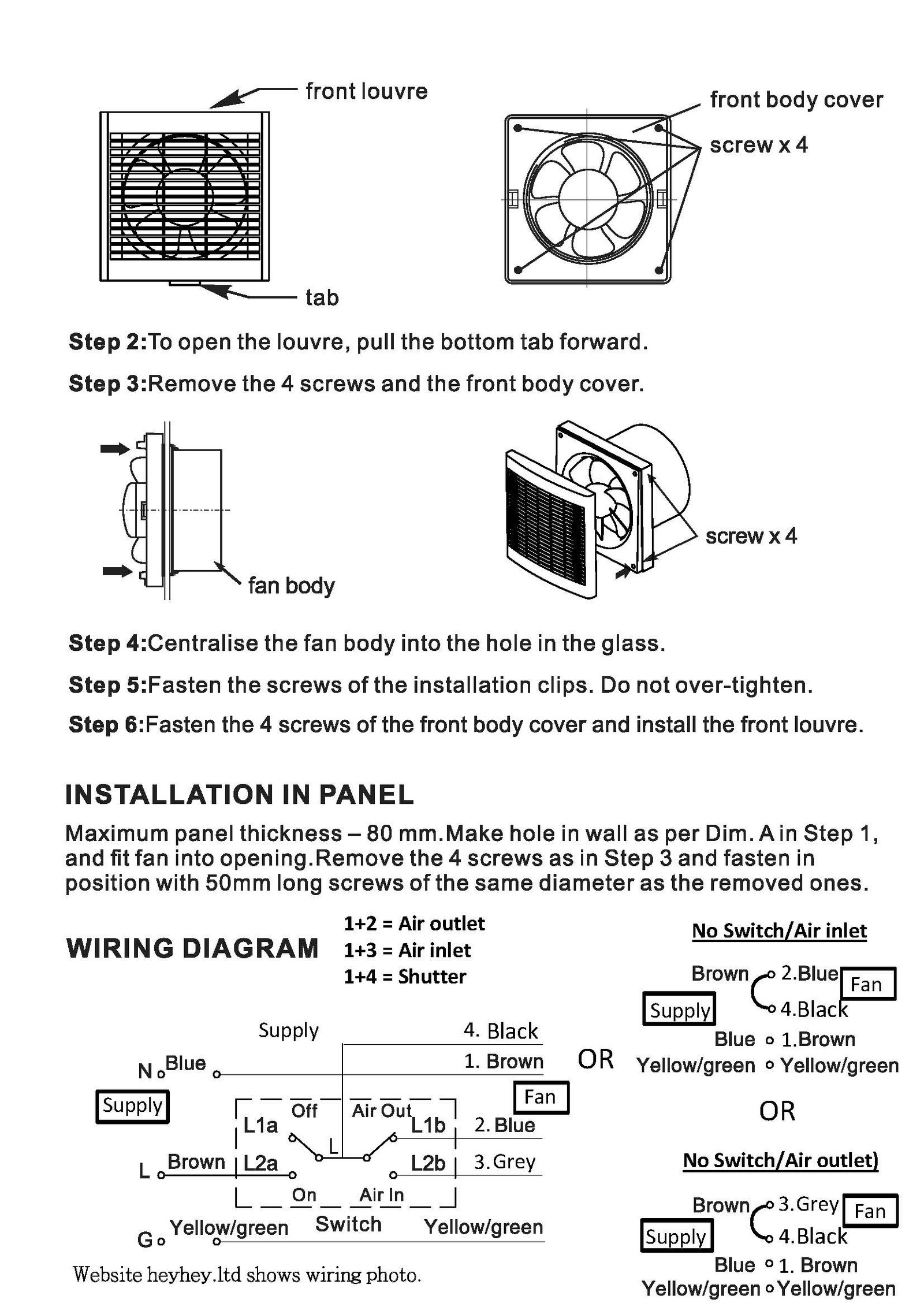

    HH-101
    線路圖

    HH101CatalogChi.pdf中文
    HH101CatalogEng.pdf英文

    View more

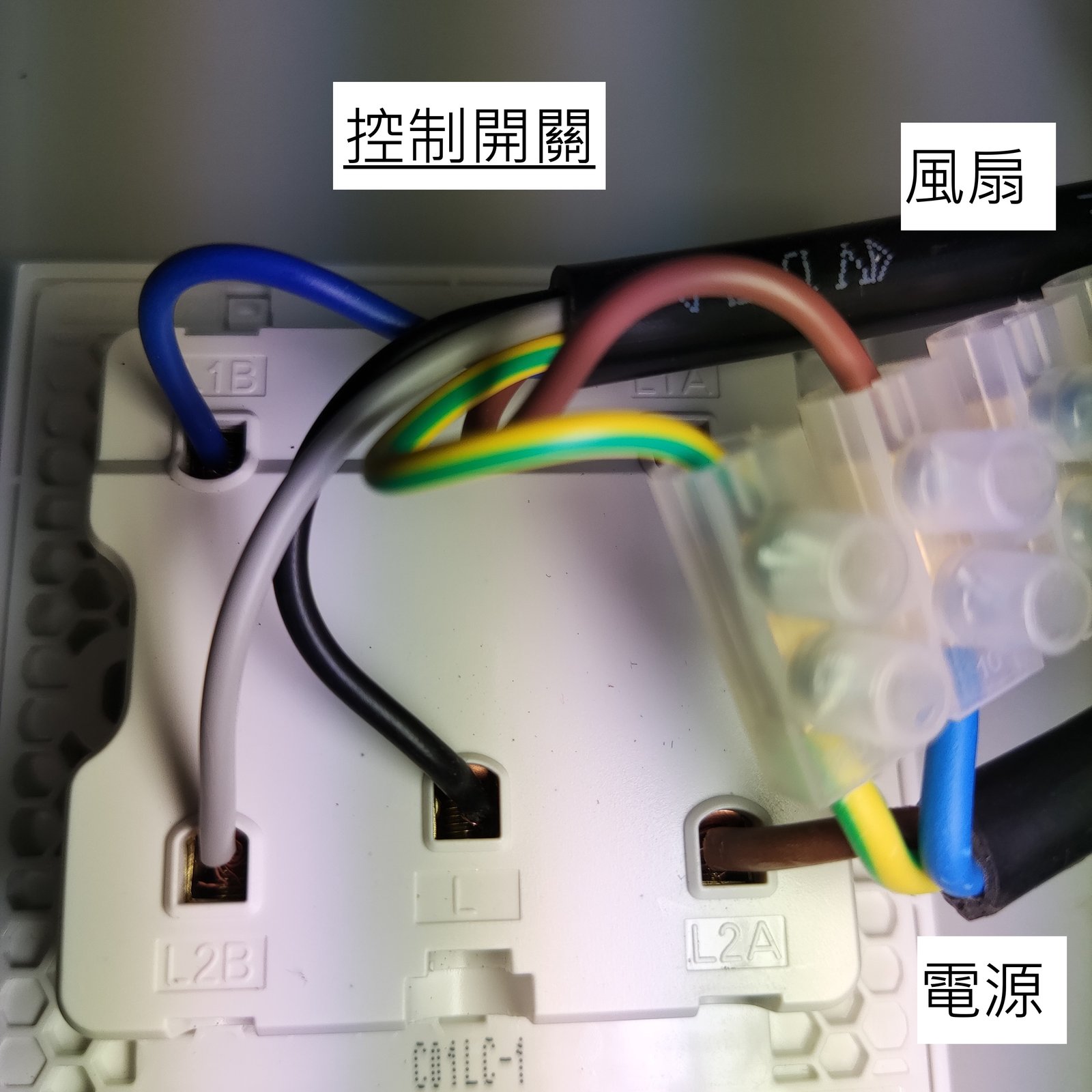

    Switch Wiring
    控制開關線路

    -----

    View more

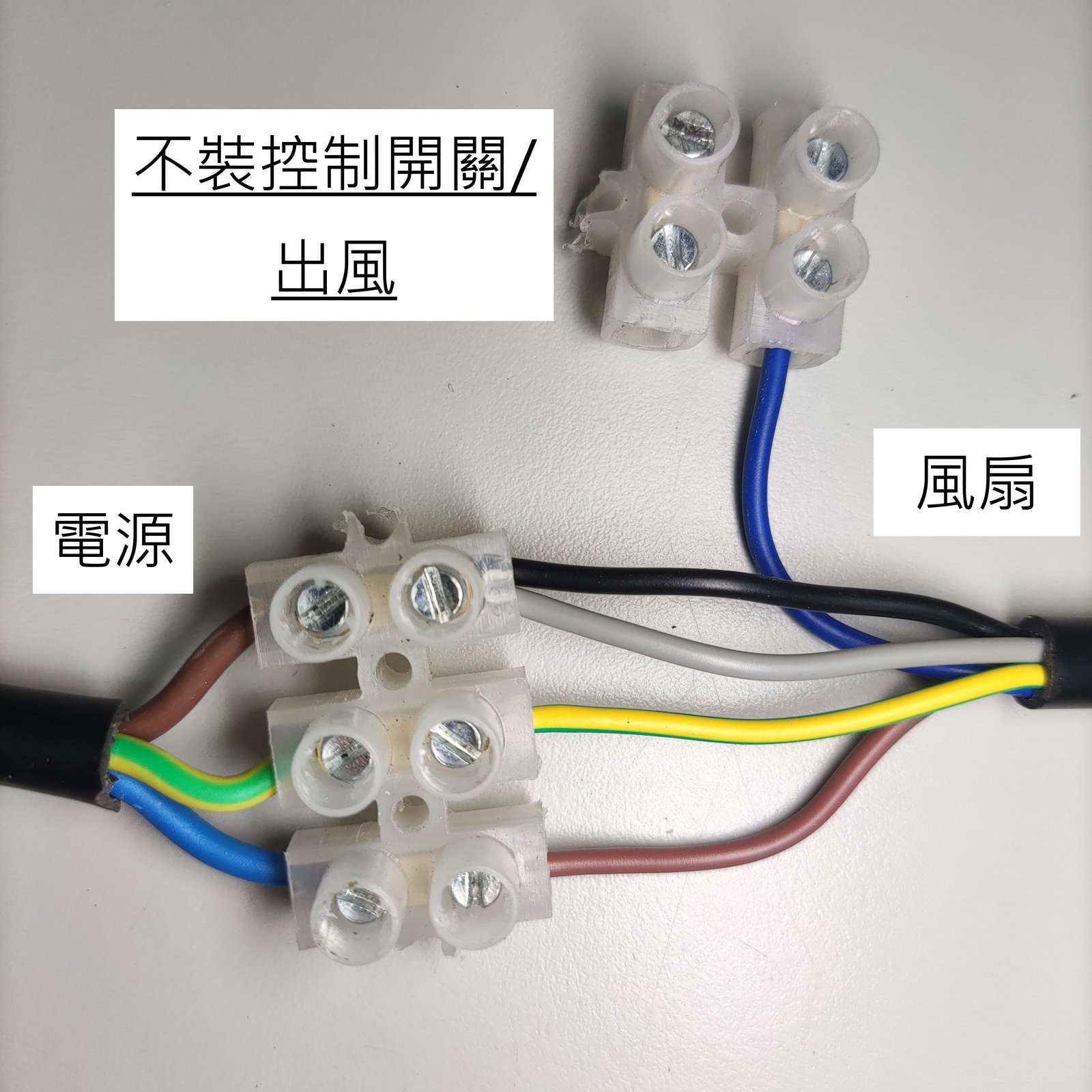

    No Switch/
    Air Inlet
    不裝控制開關/
    出風

    -----

    View more

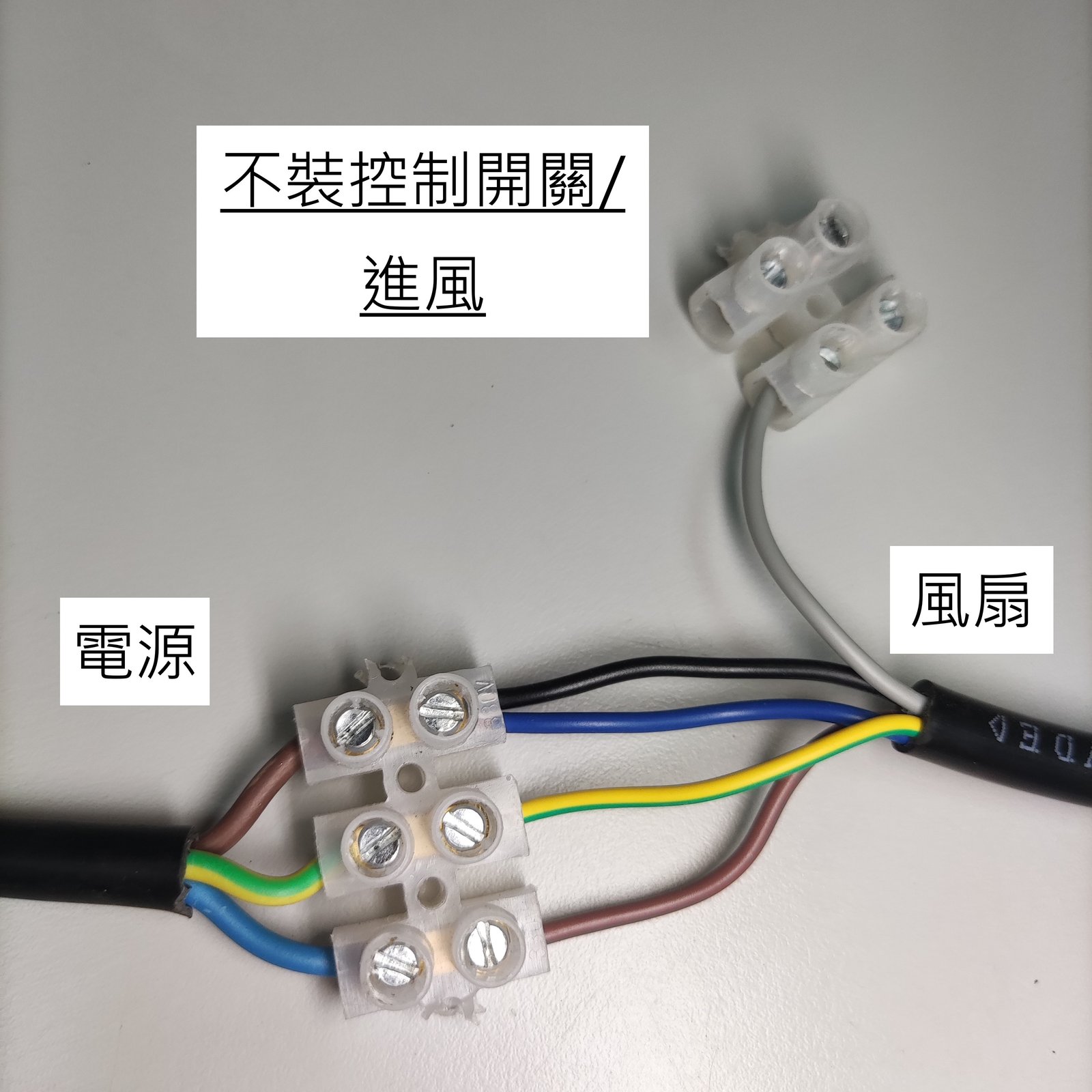

    No Switch/
    Air Outlet
    不裝控制開關/
    進風

    -----

    View more

    Switch Installation Steps

    控制開關安裝步驟

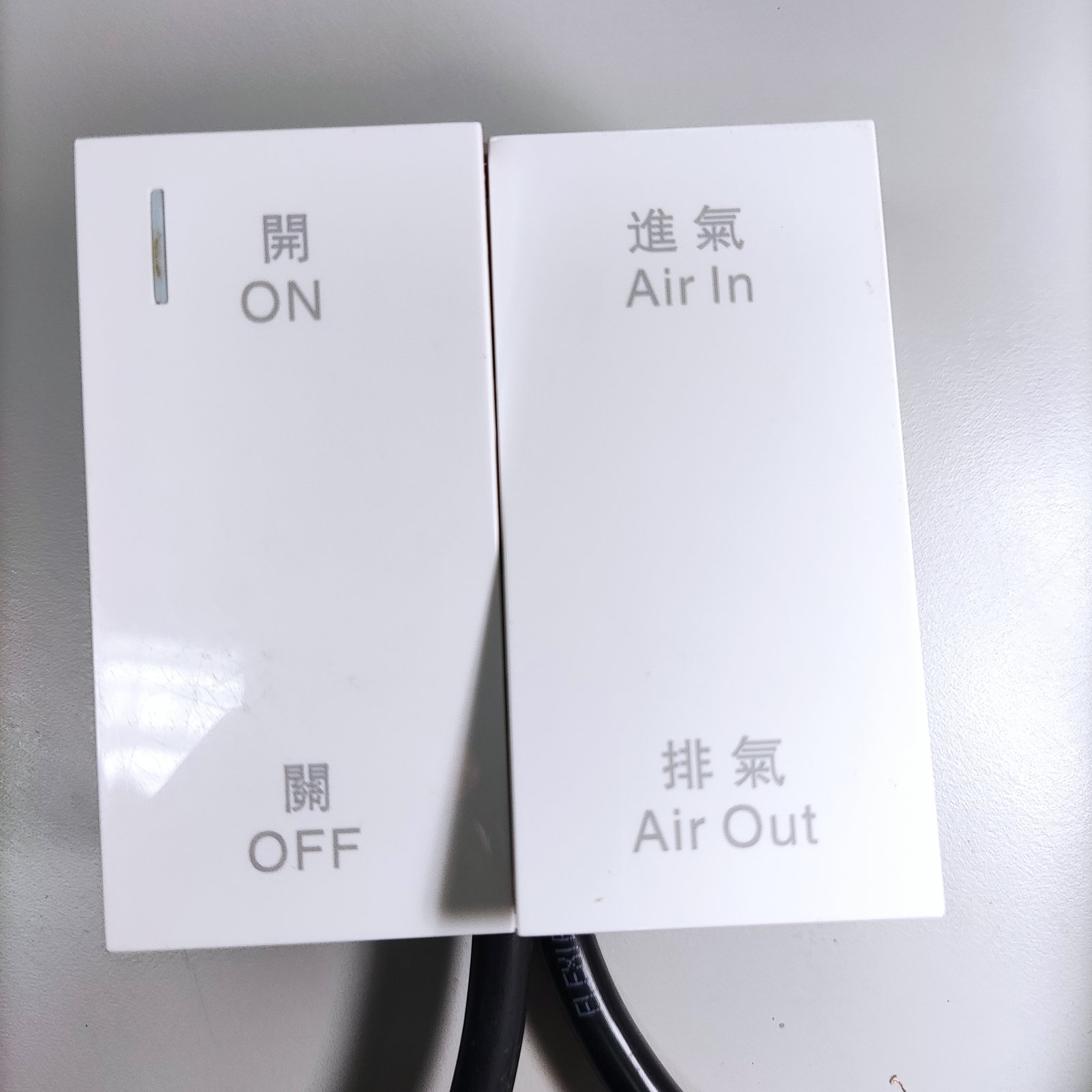

    Switch
    控制開關

    -----

    View more

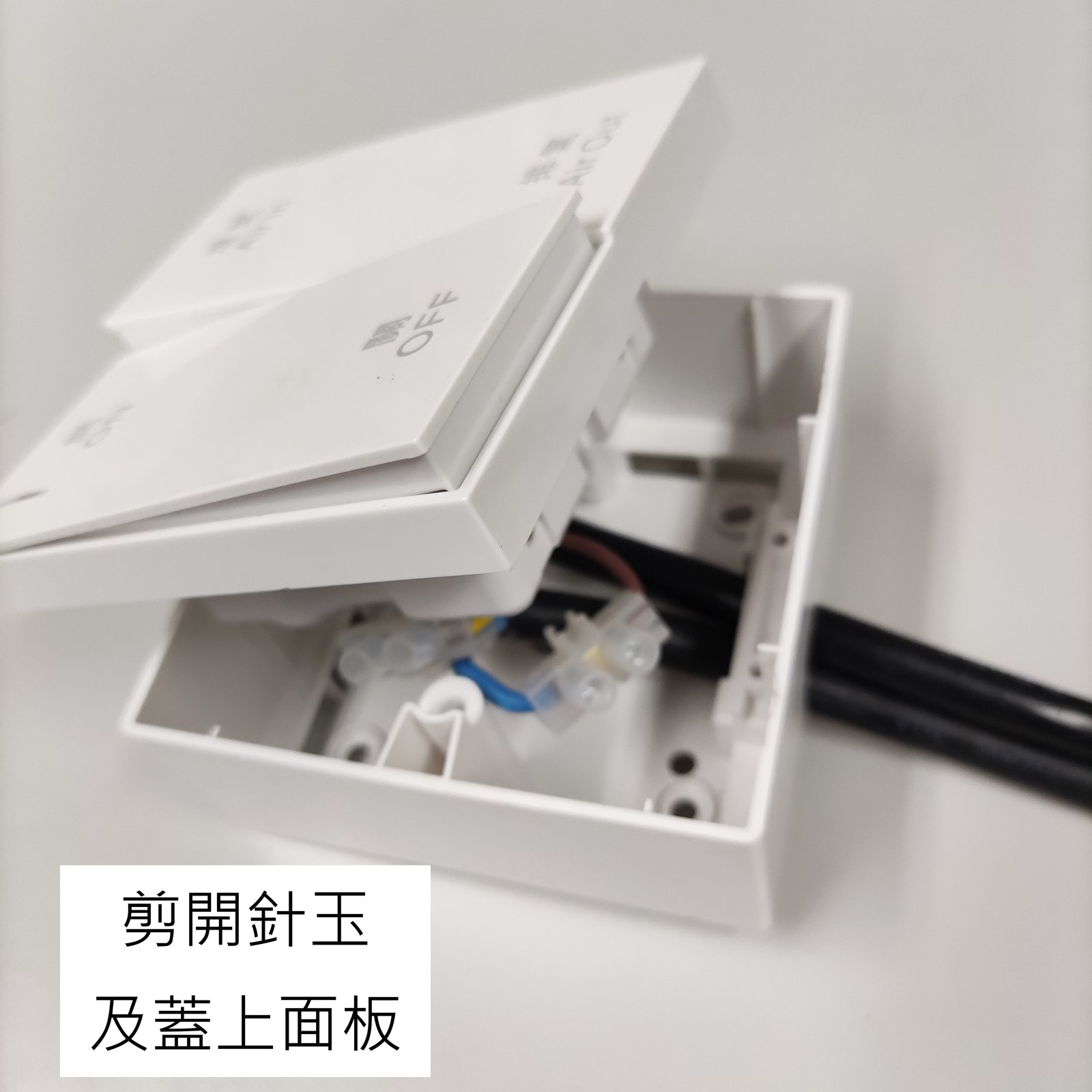

    Step 1
    步驟一

    -----

    View more

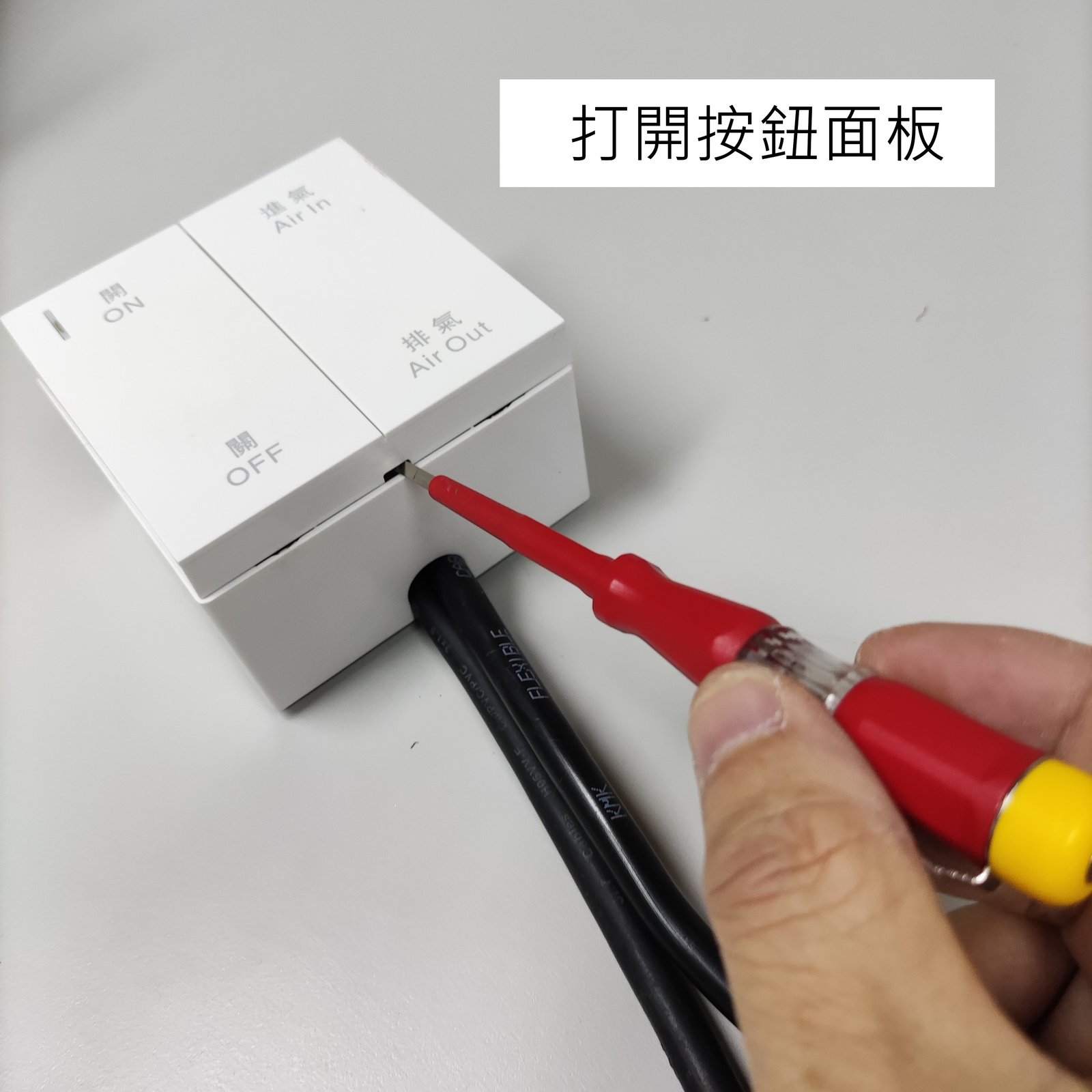

    Step 2
    步驟二

    -----

    View more

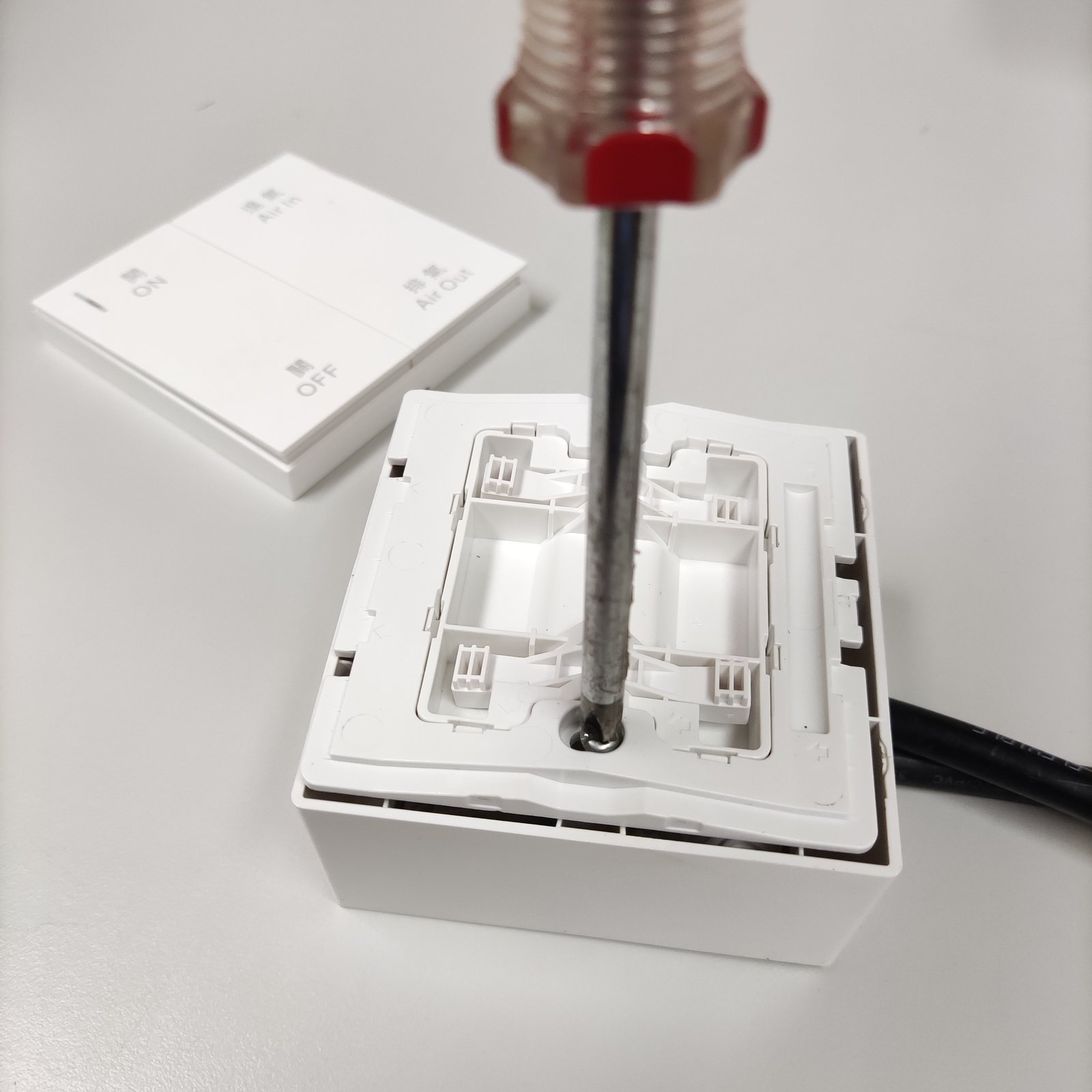

    Step 3
    步驟三

    -----

    View more

    HH-101 Outlook Operation

  • Model: HH-101 [Fan size 150mm]

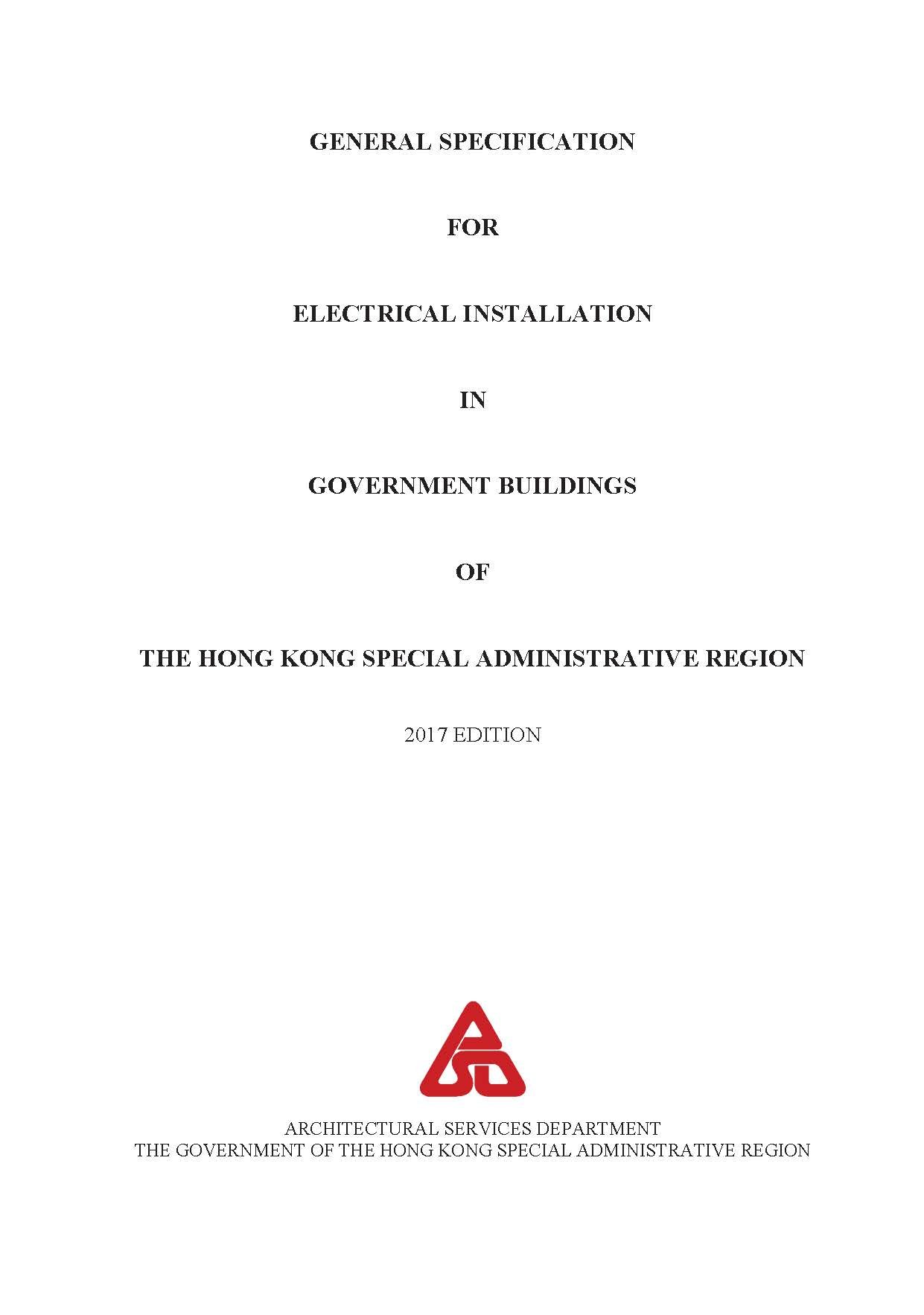

    ASD General Specification 2017

    Electrical Installation

    ASD GS EE

    Cover

    View more

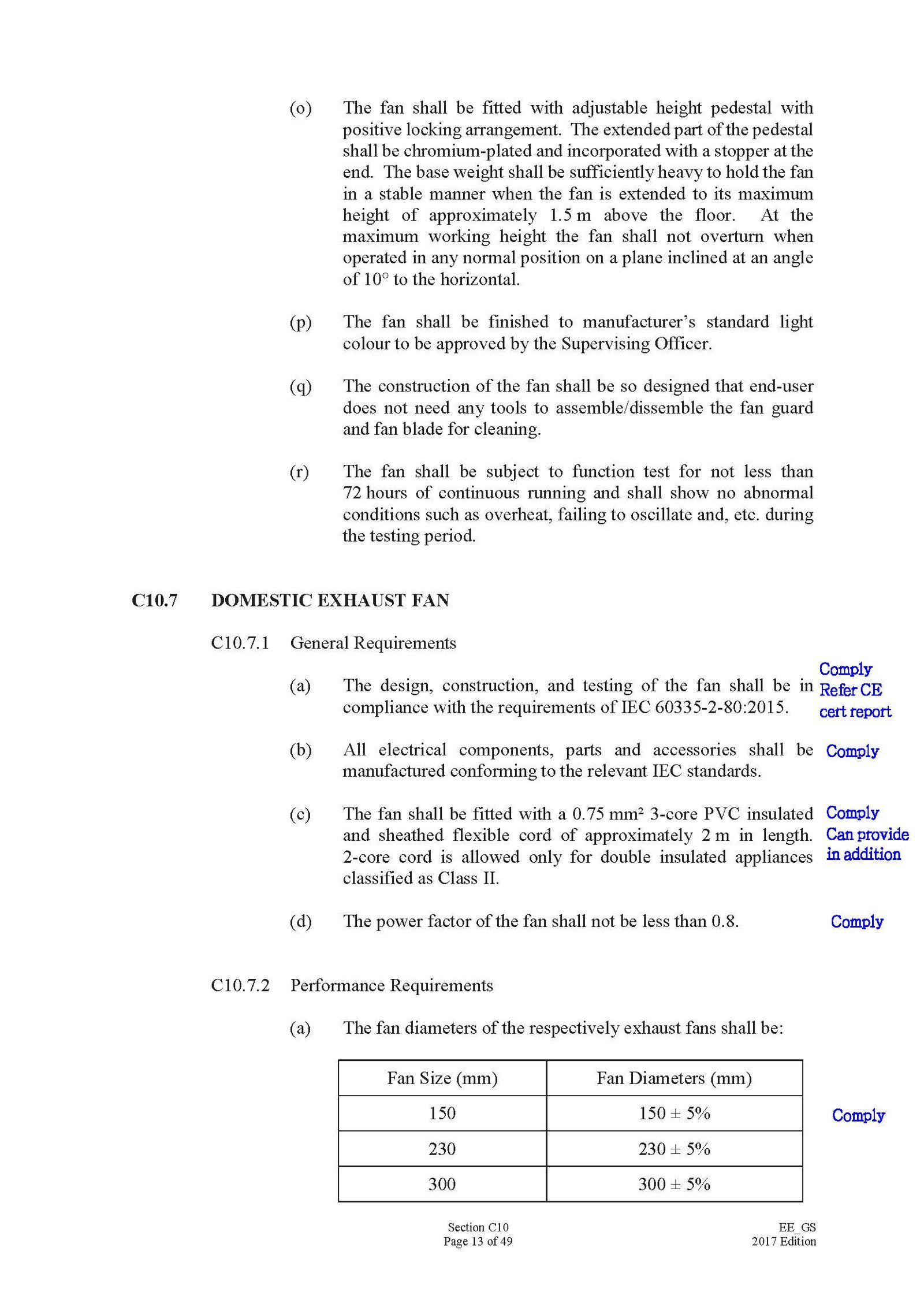

    ASD GS EE

    Clause 10.7.1

    View more

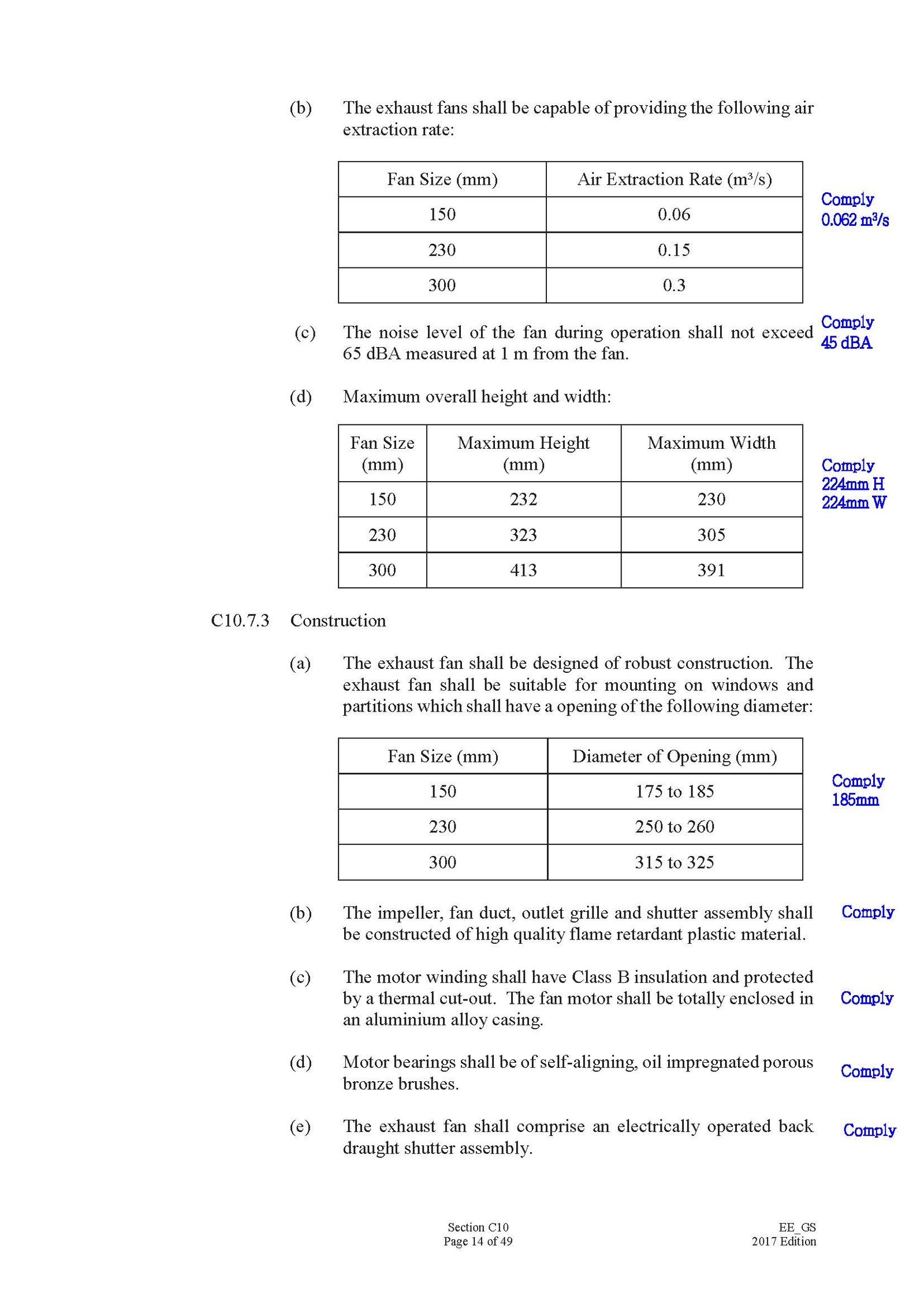

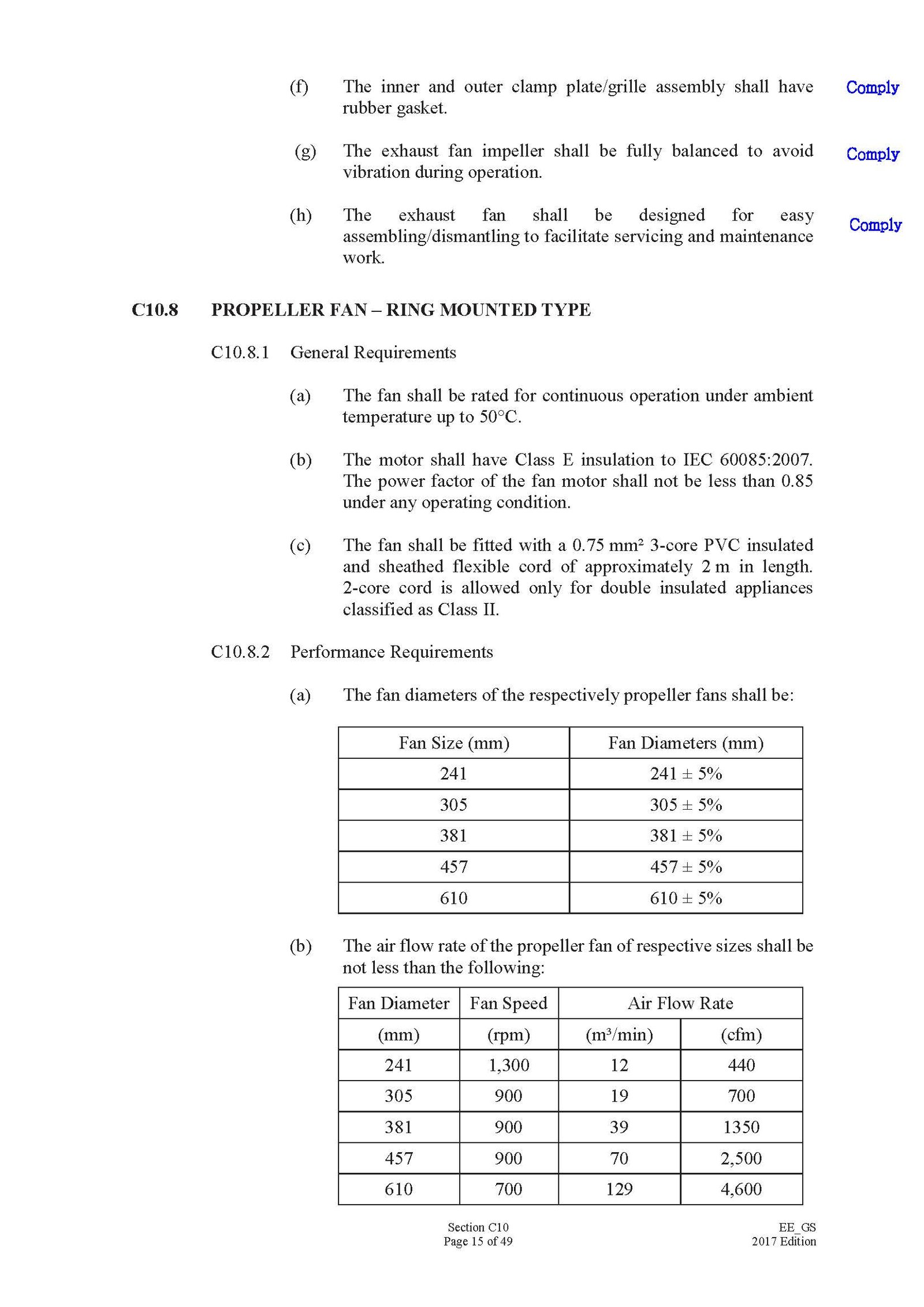

    ASD GS EE

    Clause 10.7.2

    View more

    ASD GS EE

    Clause 10.7.3

    View more

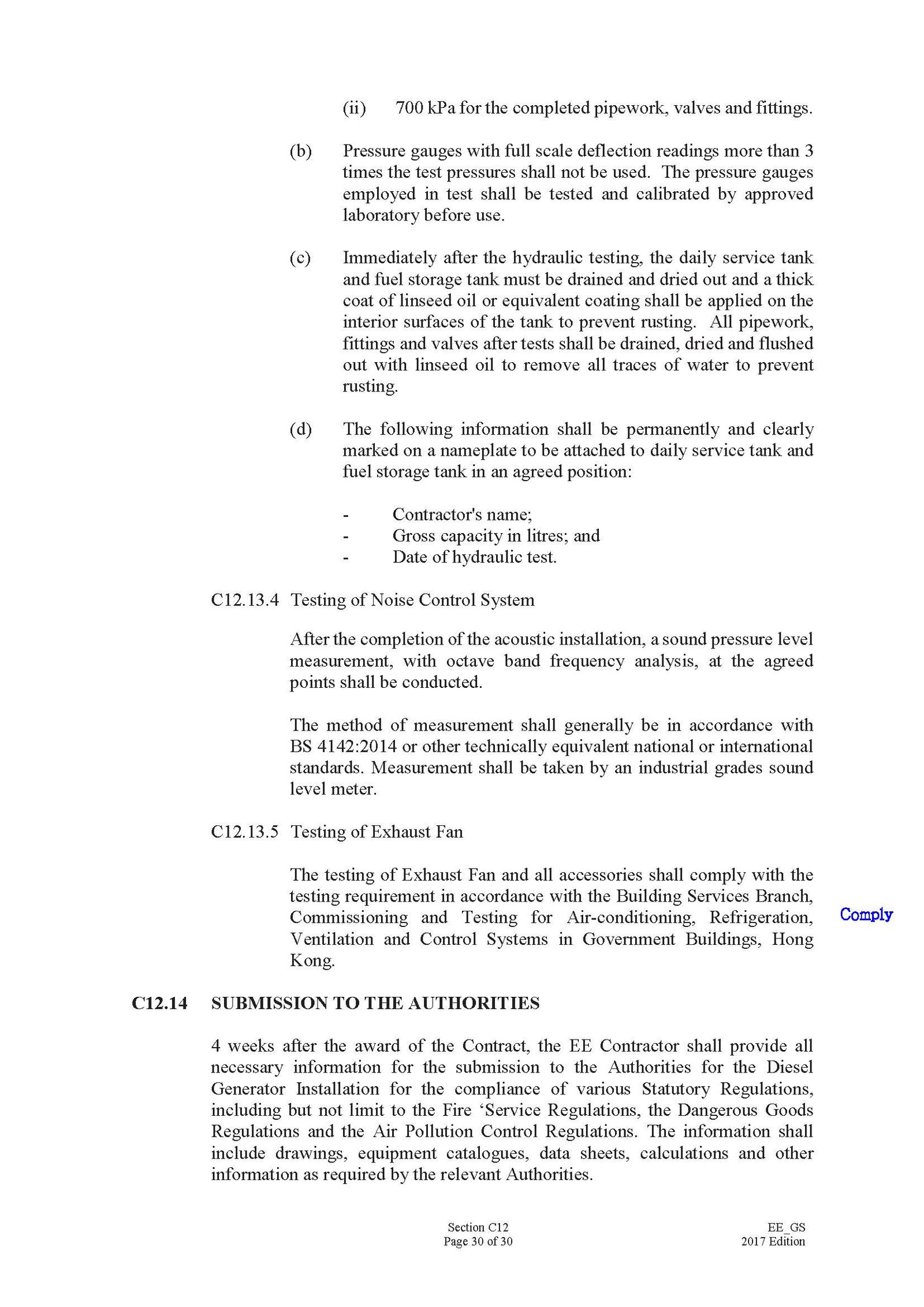

    ASD GS EE

    Clause 12.3.5

    View more

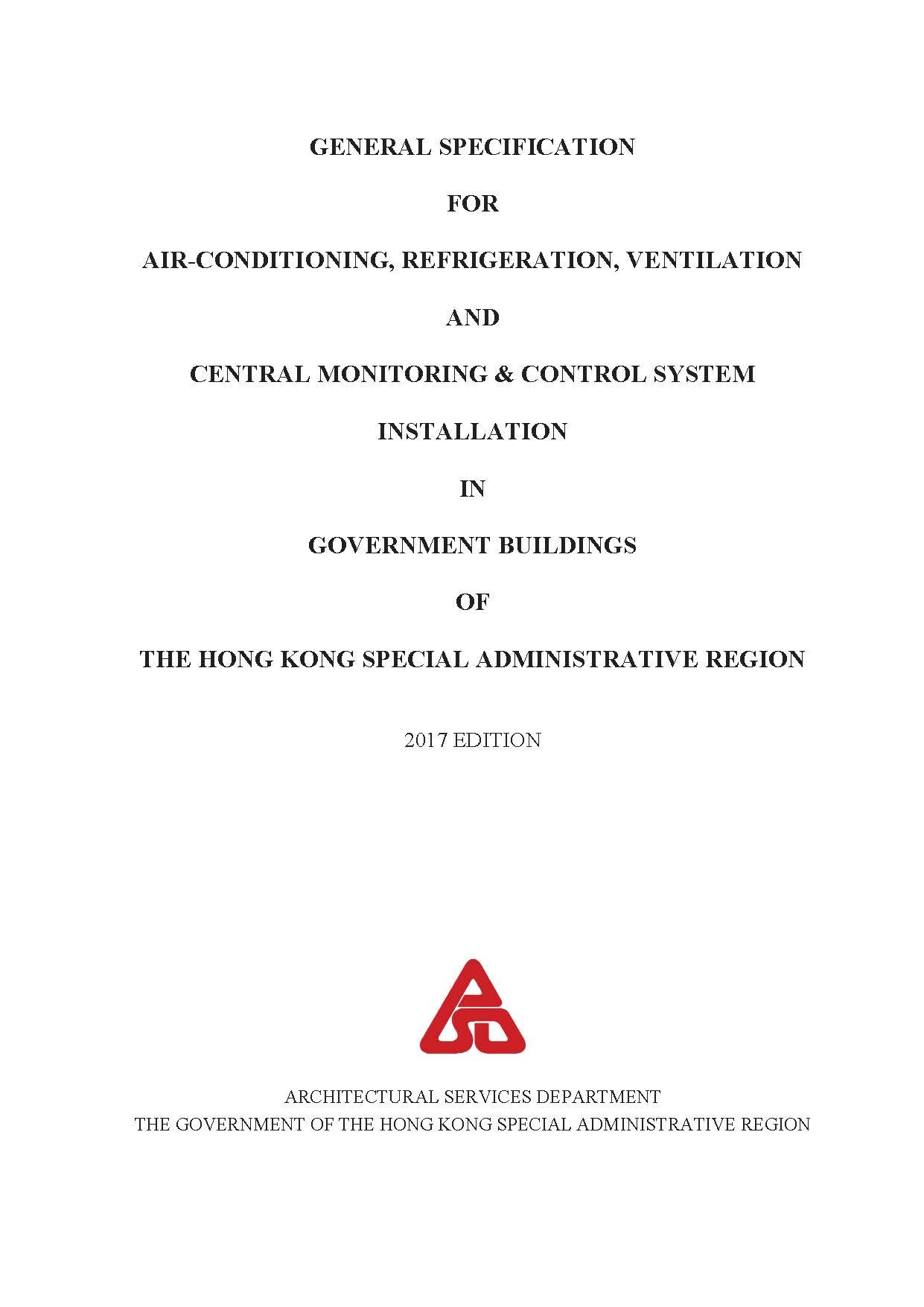

    ASD General Specification 2017

    Air-Conditioning Installation

    ASD GS AC

    Cover

    View more

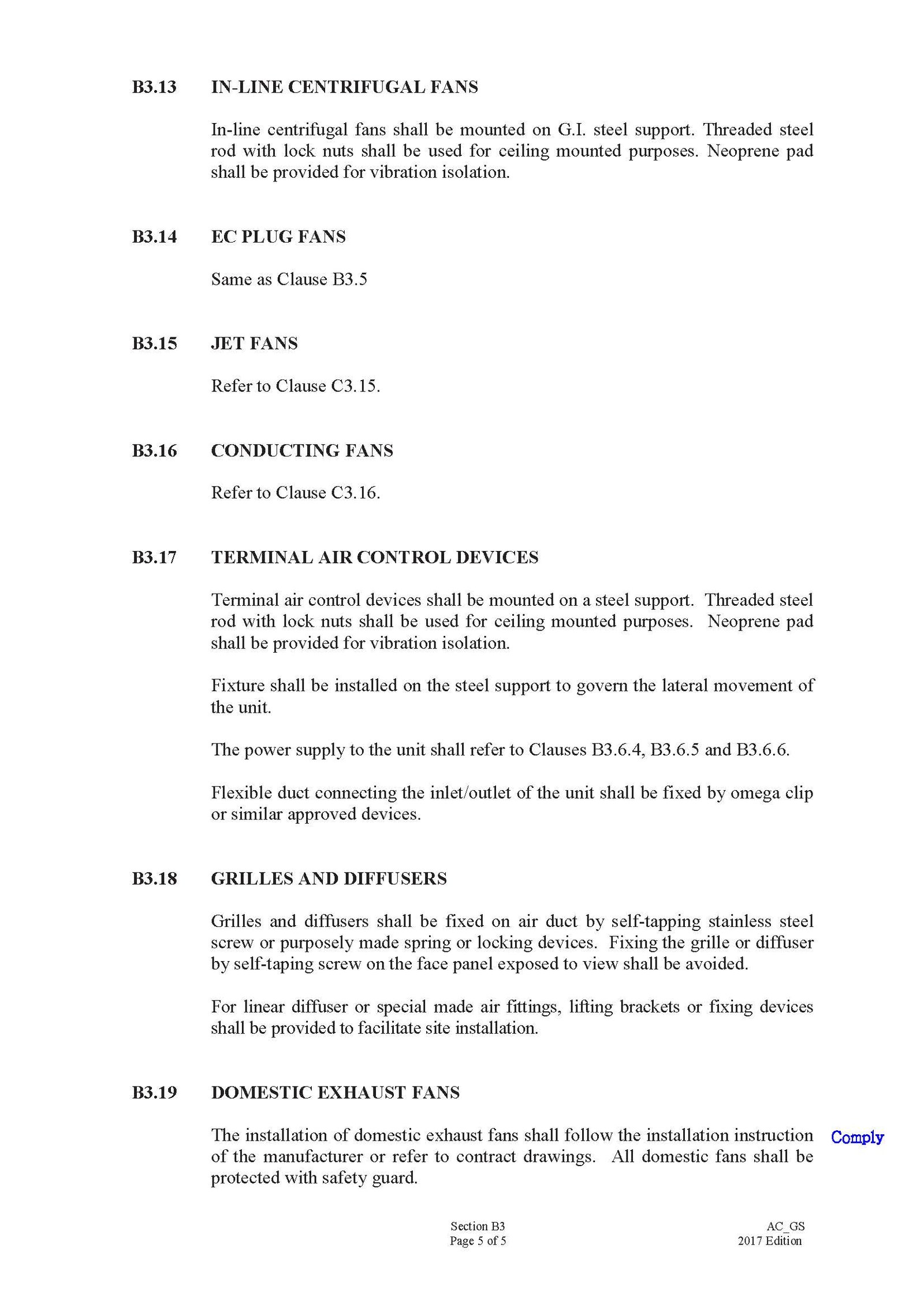

    ASD GS AC

    Clause B.3.19

    View more

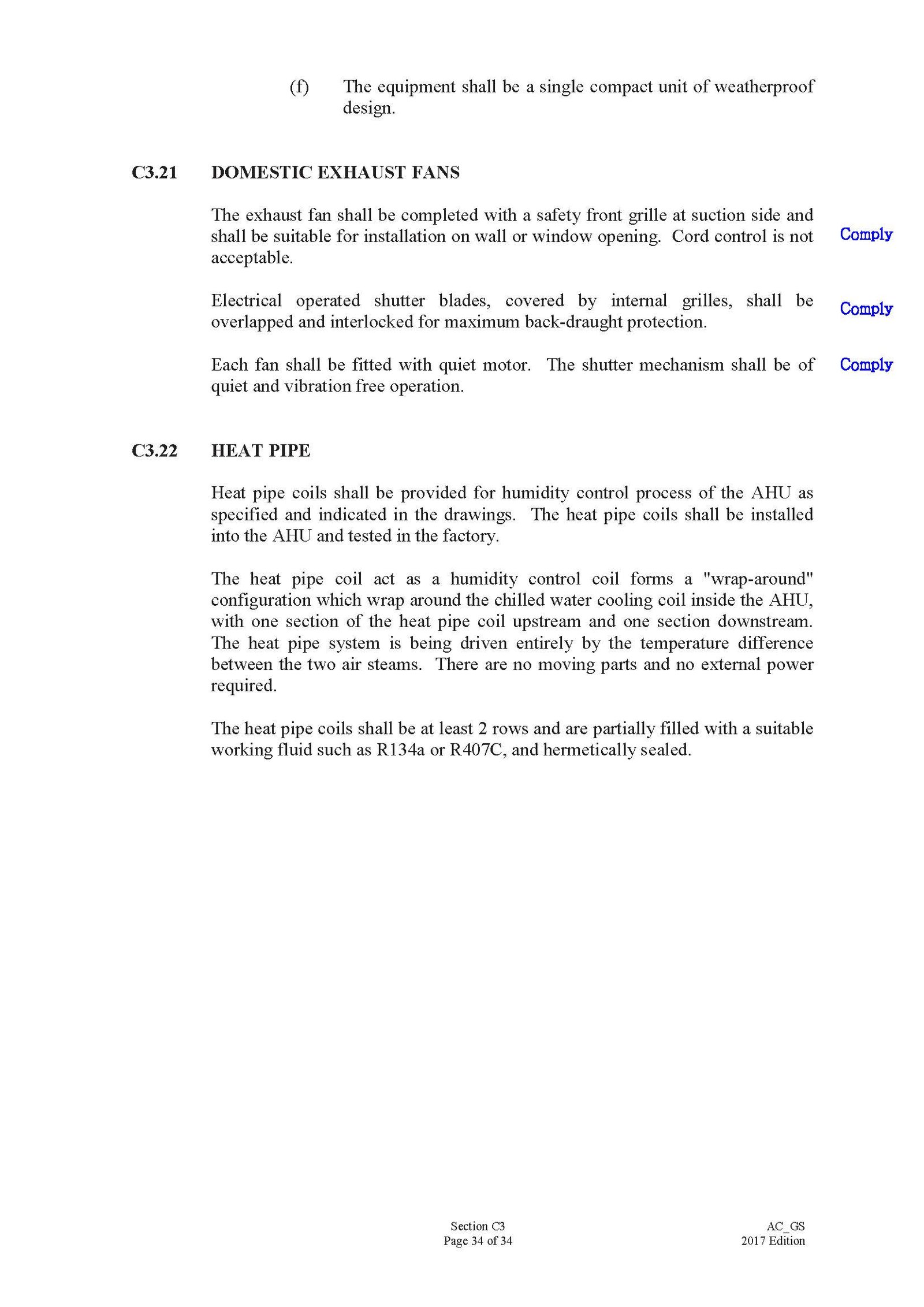

    ASD GS AC

    Clause C.3.21

    View more

    Internal switch for cable direct termination can be ordered

    Contact us for special order

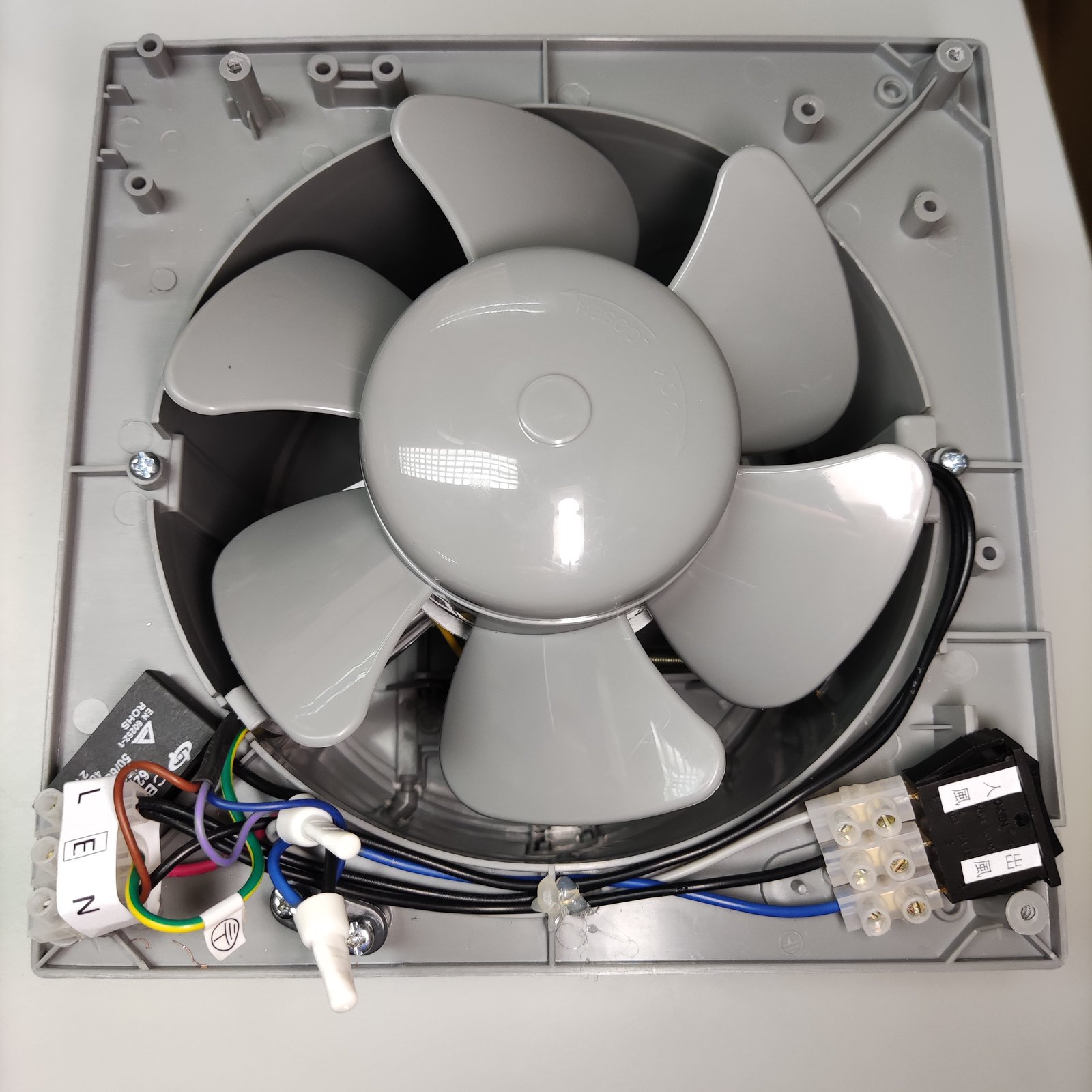

    Internal switch wiring

    Clause C.3.21

    View more
  • Comply with ASD General Specification 2017 Edition
    Electrical Installation
    Air-Conditioning Installation

    Model: HH-101 [Fan size 150mm]
    Testing date: 4 Oct 2021
    Testing venue: Hey Hey workshop

    ASD GS Electrical C10.7.2 (c)
    Noise level shall not exceed 65 dBA measured at 1 m from the fan.
    Air extraction (Air Out)[Below video reading]Operation:45dBA ; Background:36.5dBA


    Air intake rate (Air in)[Below video reading]Operation:45dBA ; Background:36.5dBA


    Take off filter before measuring air speed rate.
    ASD GS Electrical C10.7.2 (h)
    Easy assembling/dismantling to facilitate servicing and maintenance work.
    ASD GS Air-Conditioning C3.21 (b)
    The exhaust fan shall be completed with a safety front grille at suction side


    ASD GS Electrical C10.7.2 (b)
    The exhaust fans (Air out) shall be capable of providing 0.06m³/s air extraction rate
    [Below video reading]3.5m/s x 3.1416 x (150/1000/2)^2=0.062m³/s


    Air extraction rate (Air out, fan anti-clockwise) is similar to Air intake rate (Air in, fan clockwise), by the same motor.
    [Below video]


    Air intake rate (Air in)
    [Below video reading]3.5m/s x 3.1416 x (150/1000/2)^2=0.062m³/s


    ASD GS Electrical C10.7.2 (b)
    The exhaust fan shall comprise an electrically operated back draught shutter assembly.
    ASD GS Air-Conditioning C3.21 (b)
    Electrical operated shutter blades, covered by internal grilles, shall be overlapped and interlocked for maximum back-draught protection.


    Other governmental requirements
    EMSD Supply and Installation Contract Requirement
    Noise level shall not exceed 40 dBA measured at 1.5 m from the fan.
    [Video reading]Operation:39.5dBA ; Background:36.5dBA


    SWD and HAD Requirements for Fresh air intake (Air in) speed With Filter for licensing premises
    Classroom, Elderly Rehabilitation Centre, Elderly Home, Bedspace Apartments, Club, Hotel and Guesthouse
    [Video reading]3.4m/s x 3.1416 x (150/1000/2)^2=0.06m³/s [Comply with ASD GS 0.06m³/s]


    Air extraction rate (Air out) speed With Filter
    [Below video reading at Front & Back] 2.8m/s(Front-For reference) & 3.8m/s(Back) x 3.1416 x (150/1000/2)^2=0.067m³/s [Comply with ASD GS 0.06m³/s]

  • 每個HH-101風扇 = 223m3/h; 3.72m3/min; 0.062m3/s; 62L/s

    安老院

    機電工程處及社會福利署 安老院牌照事務處代表


    根據以上安老院牌照事務處代表, 10L/s/peron, 每個HH-101風扇(62L/s)可供應6.2人鮮風

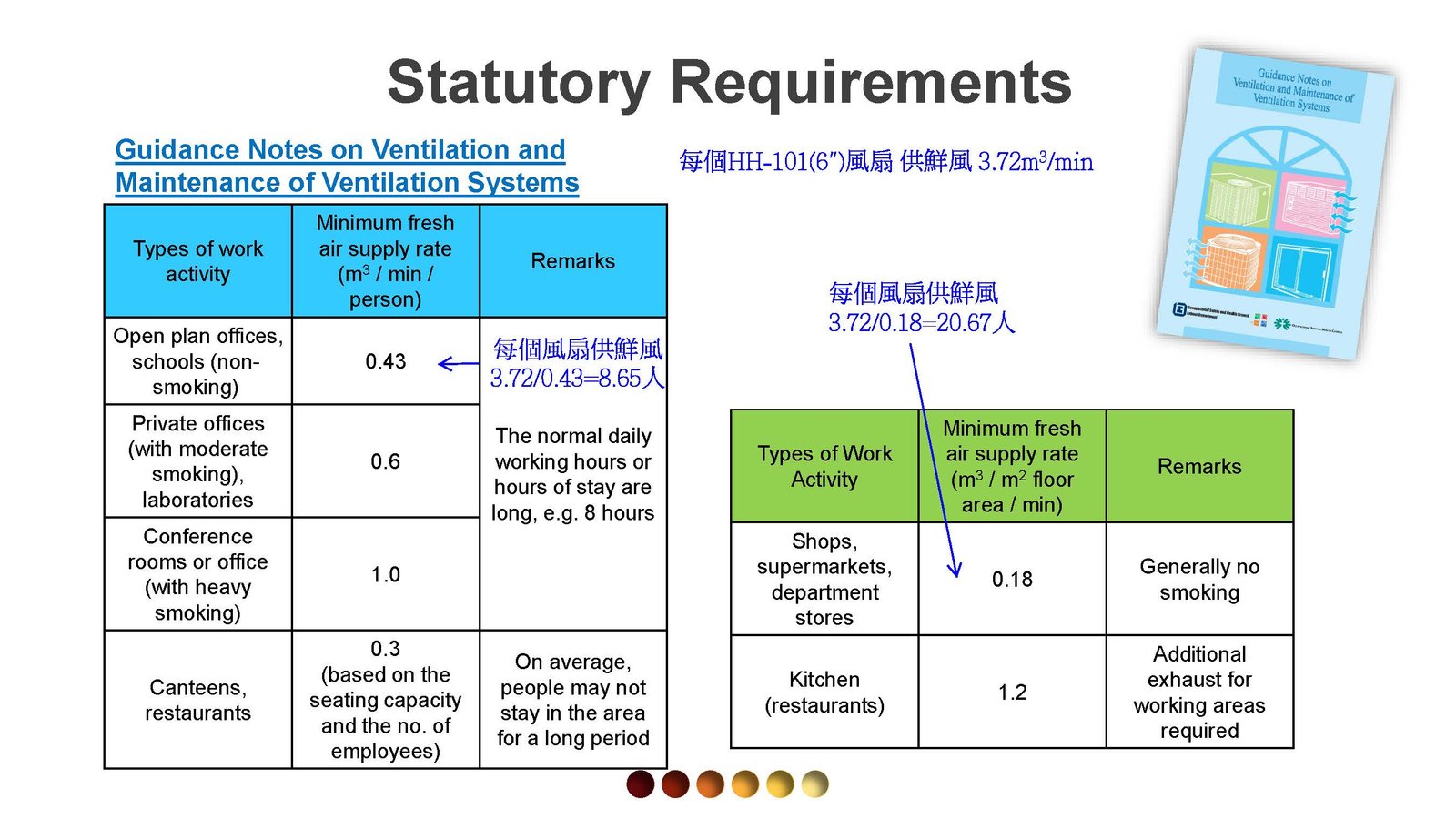

    學校,辦公室

    School
    學校

    ---

    View more

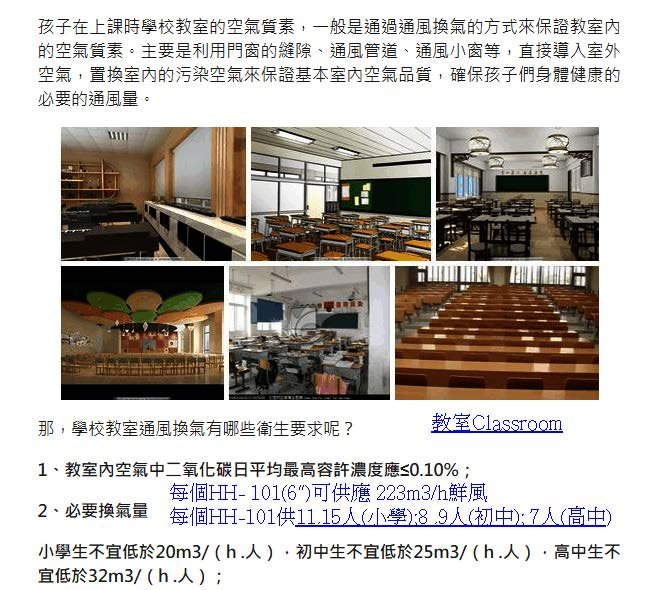

    教室

    Classroom
    教室

    ---

    View more

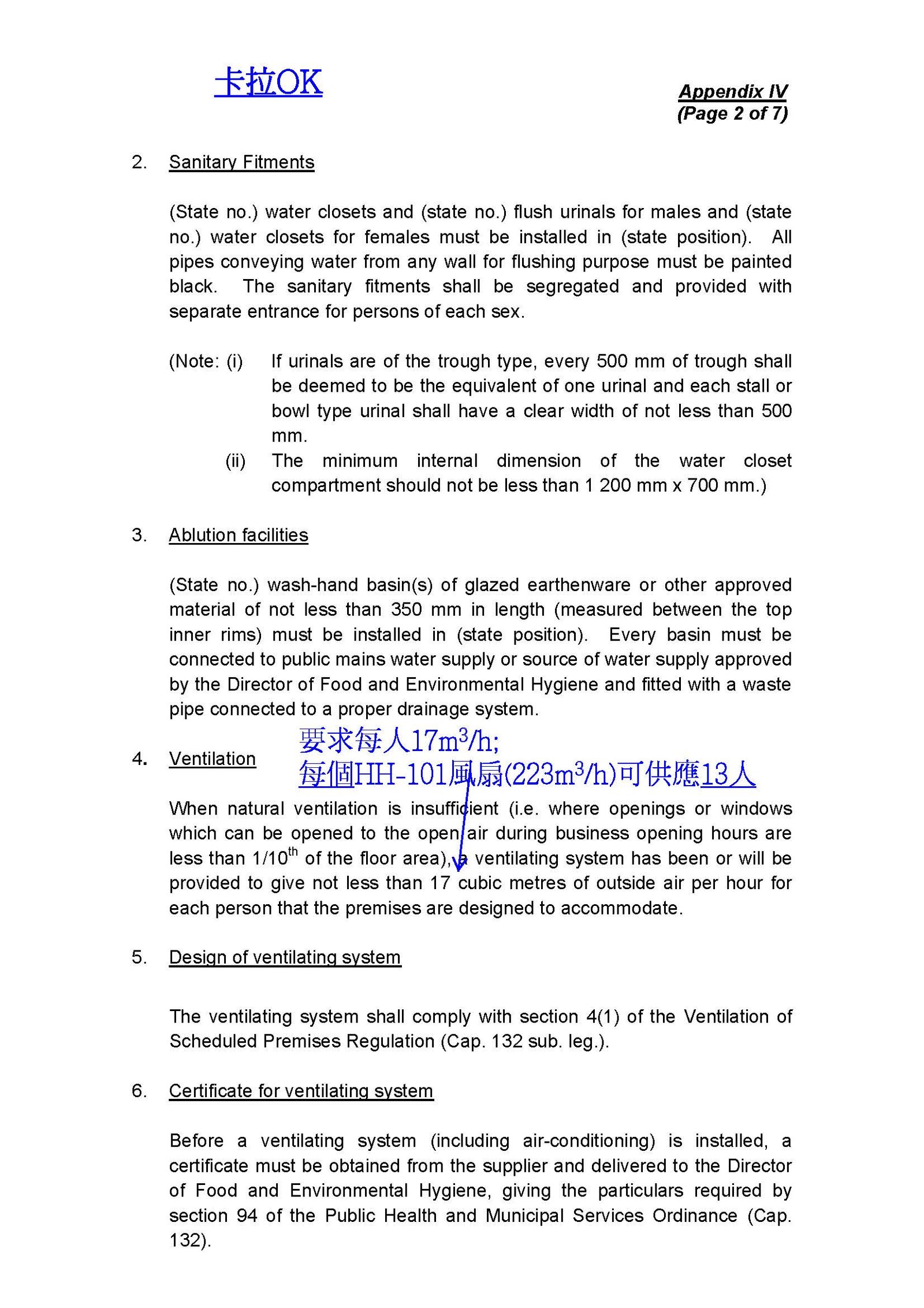

    卡拉OK

    Karaoke
    卡拉OK

    ---

    View more

    By Room Volume Calculation
    Each HH-101 fan is 3.72m3/min, find how many fans are needed.

    i.e. If m3/min requirement from below is 7, then 2 nos. of HH-101 fans are needed
    新冠肺炎期間,政府要求6 Air Change (Preset in program)

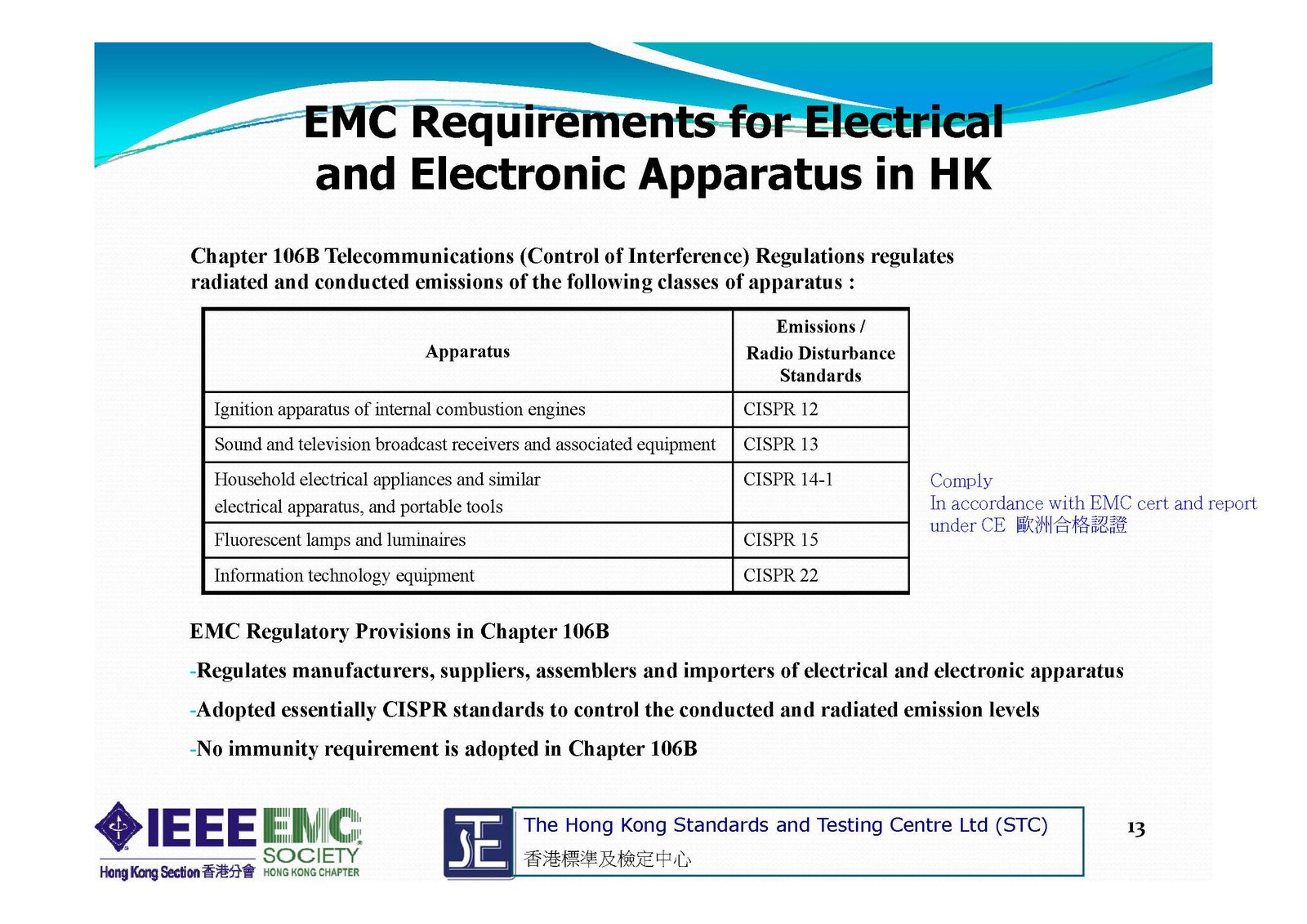

    EMC requirements under Cap 106B Regulations 諧波

    EMC Requirements
    Cap106B

    Telecommunications Regulations

    View more

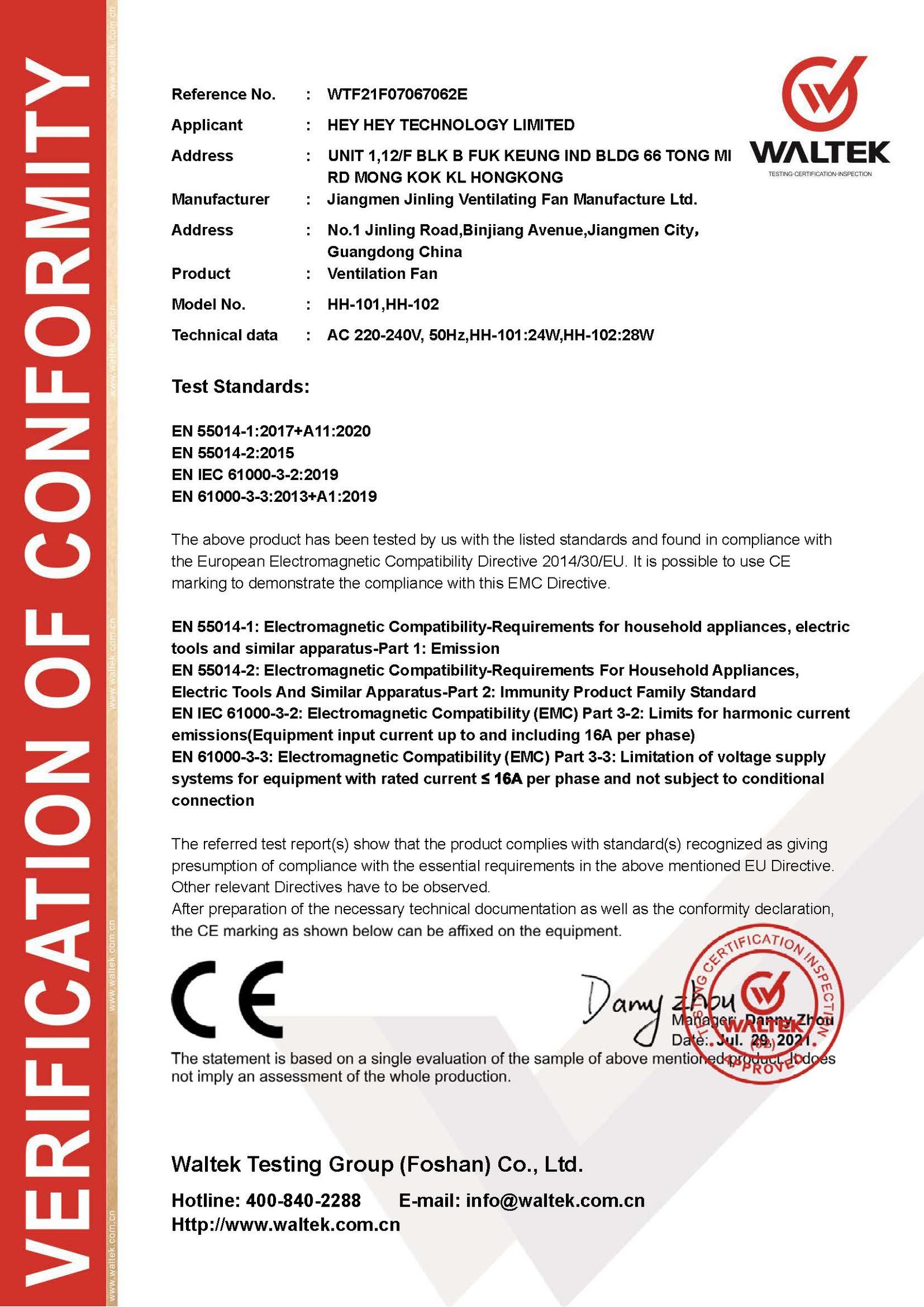

    HH-101,102
    EMC認證

    ---

    View more

    HH-101,102
    EMC Report

    ---

    View more

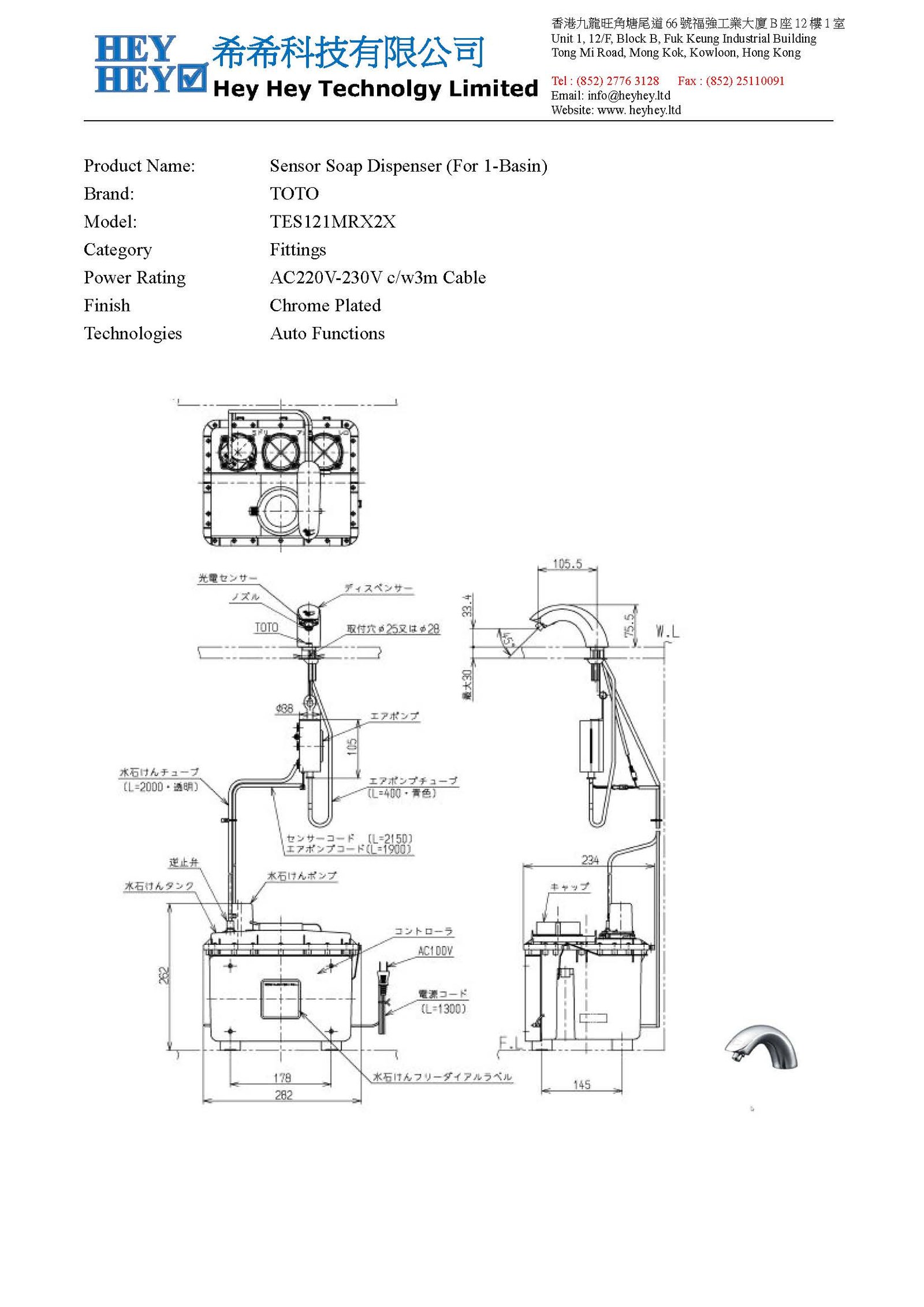

  • Sensor Soap

    皂液感應器產品

    Sensor Soap1
    皂液感應器1

    ---

    View more
  • Toilet Components

    坐廁組件產品

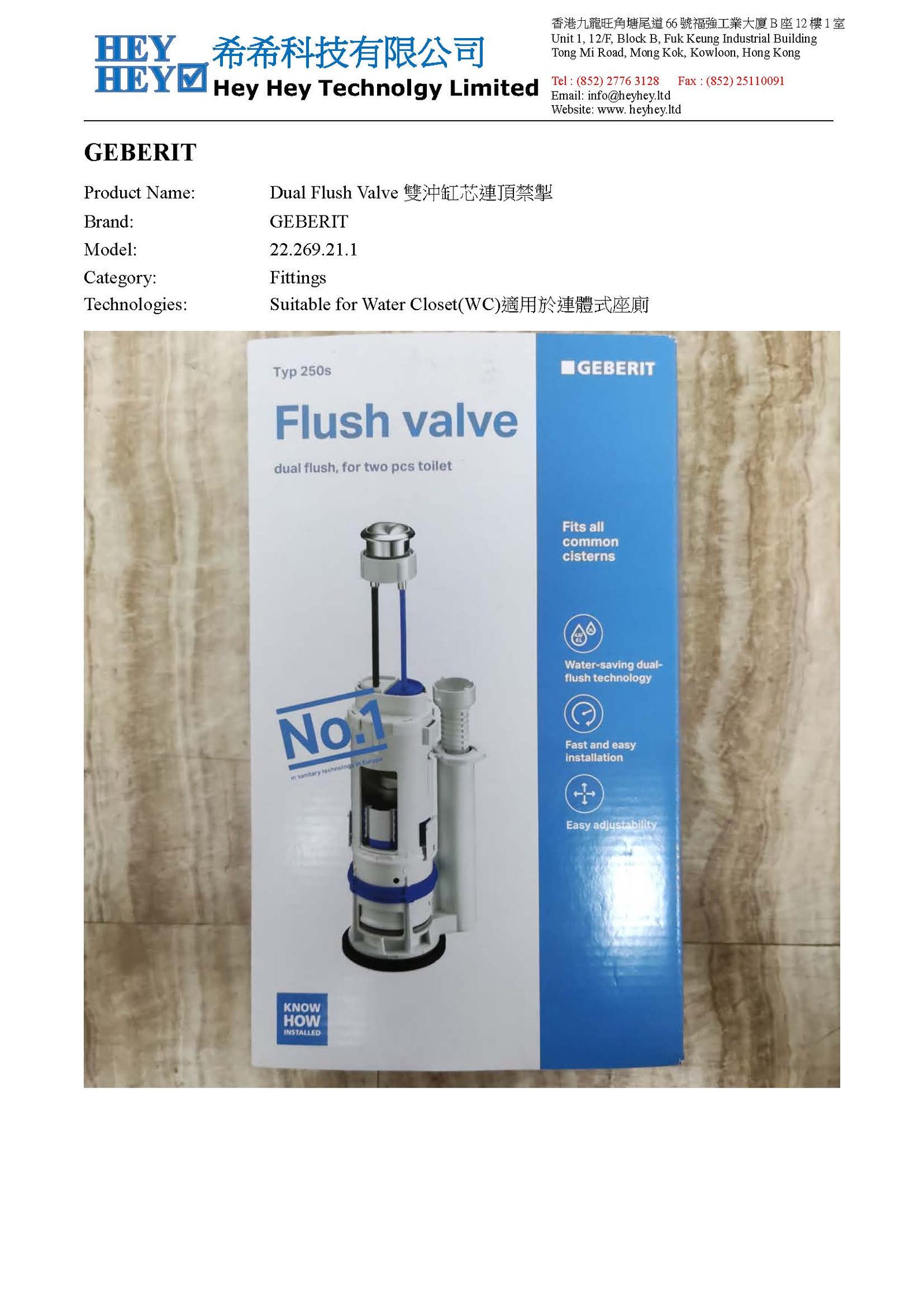

    Toilet Flush1
    雙沖水閥1

    View more

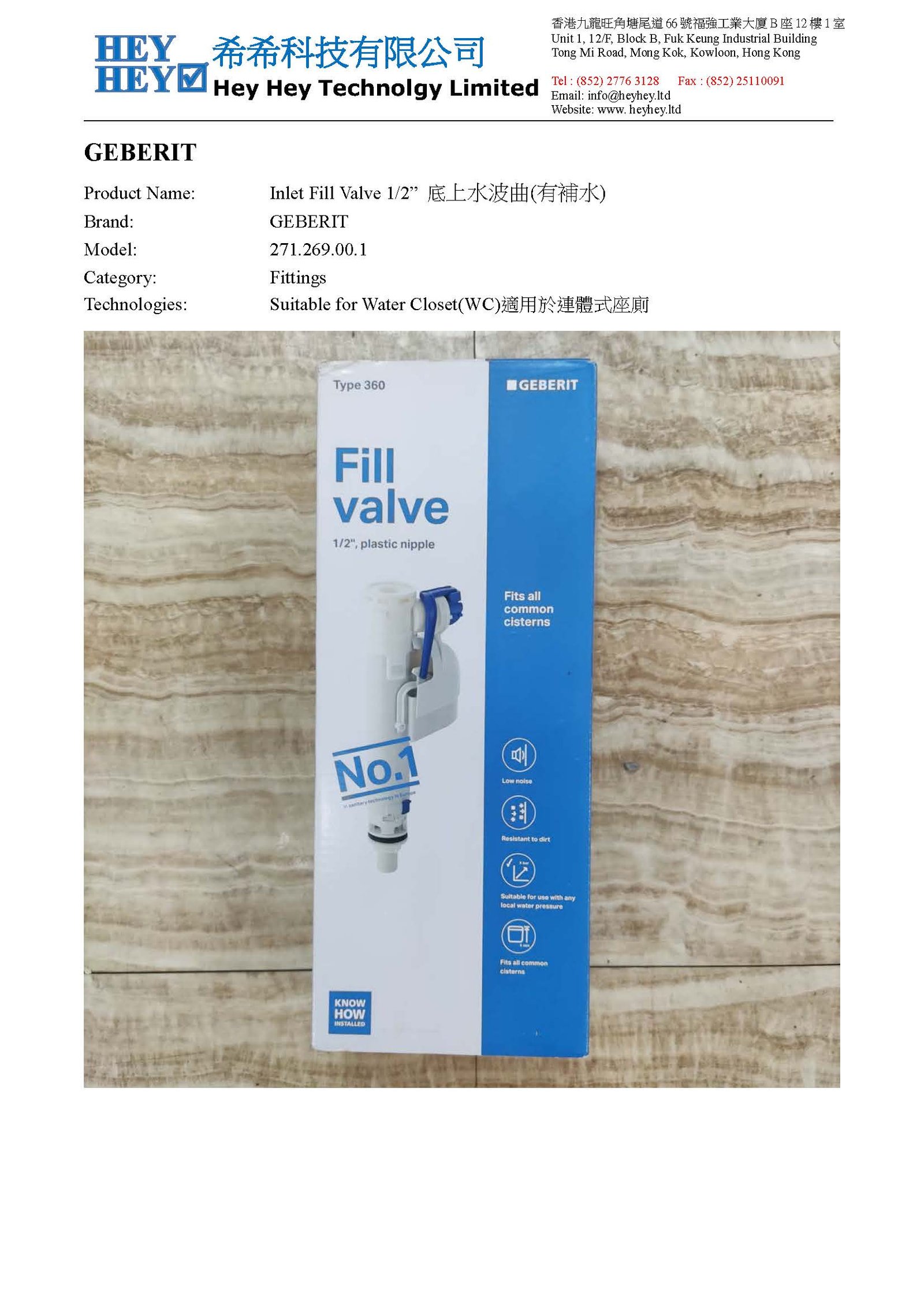

    Toilet Fill1
    進水閥1

    View more

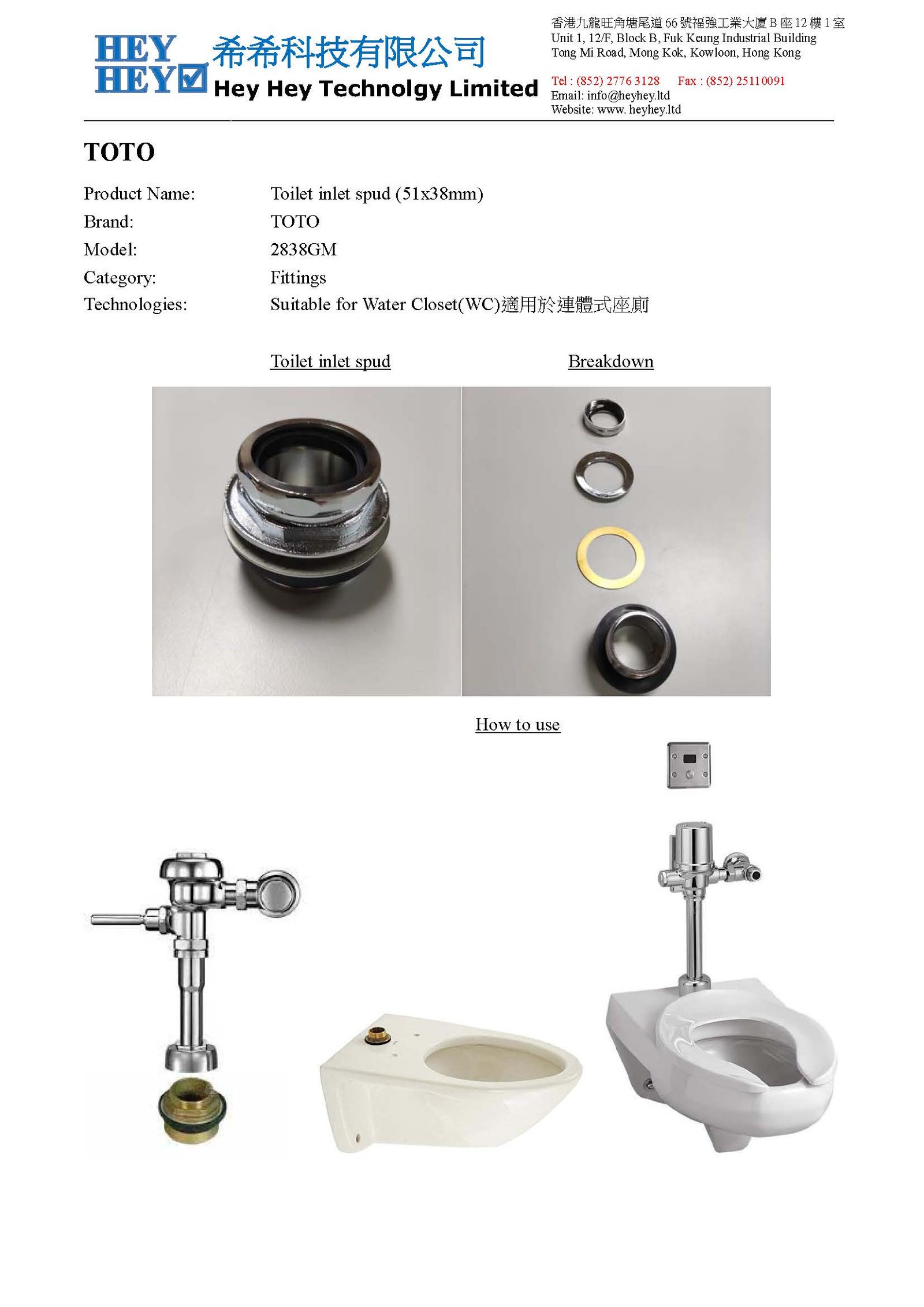

    Toilet Inlet Spud1
    進水口配件1

    View more
  • Price

    價目表

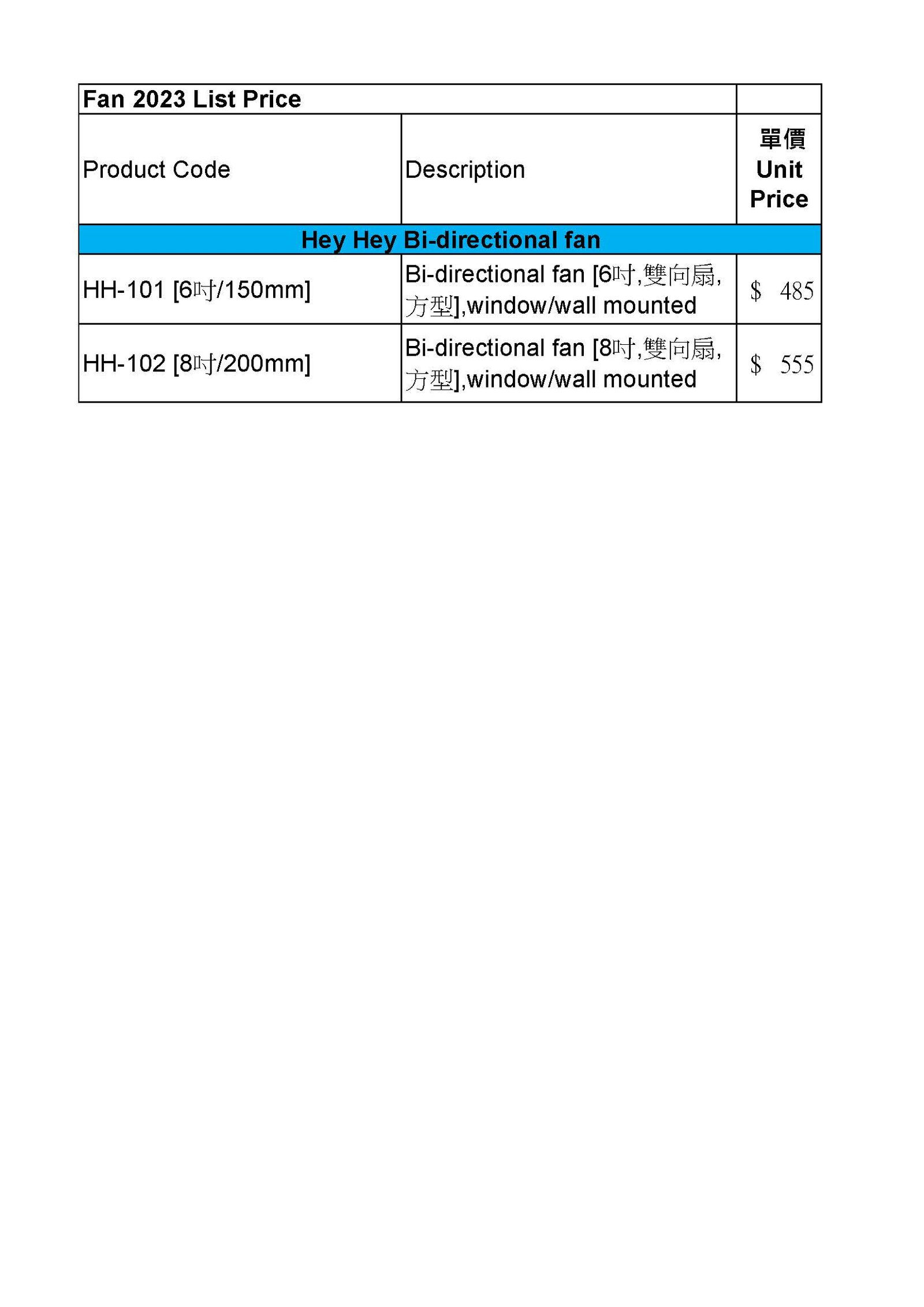

    fan price
    窗口扇價目表

    View more

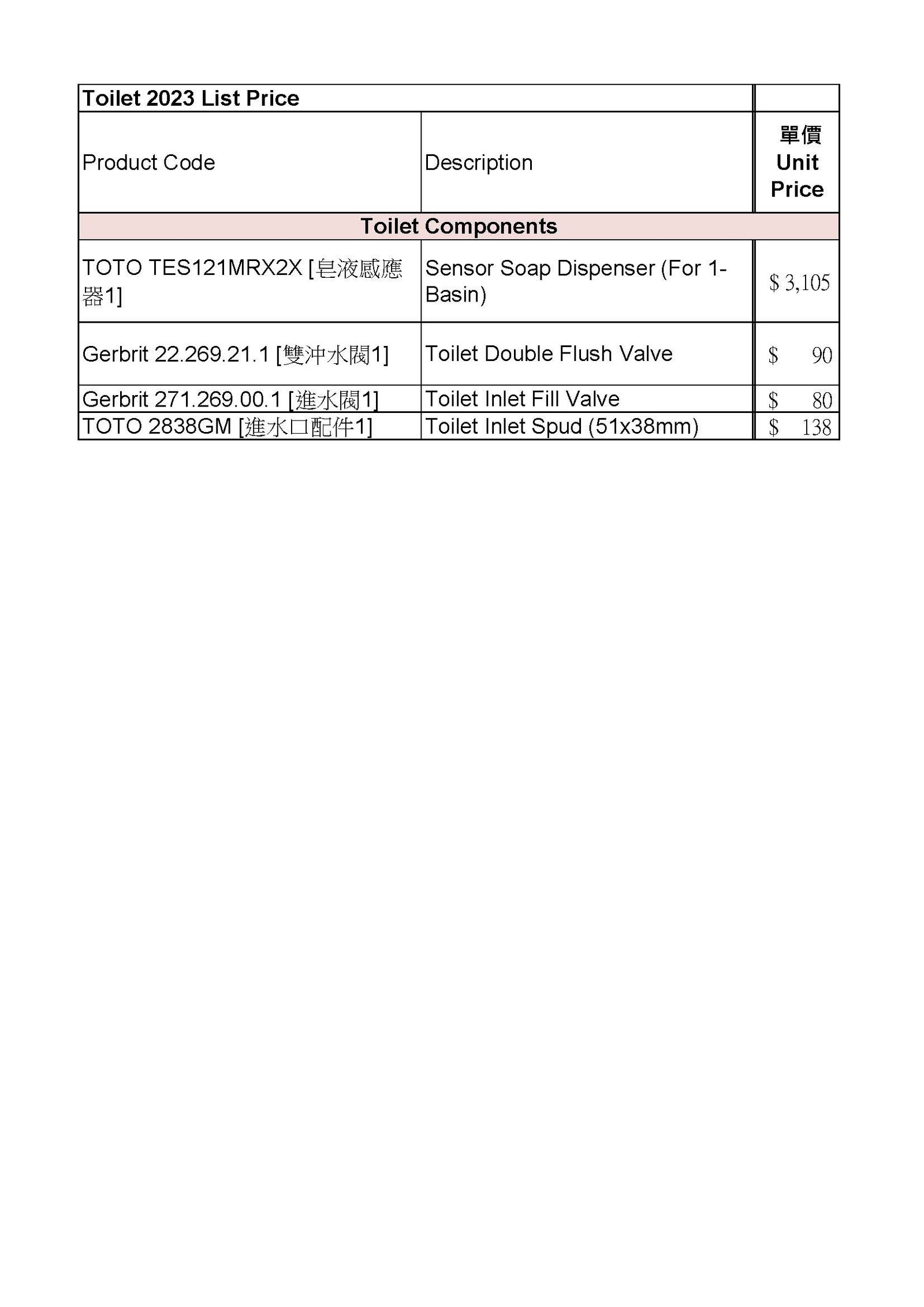

    toilet price
    廁所價目表

    View more
  • Contact us

      希希有限公司
      Hey Hey Firm Limited
      希希科技有限公司
      Hey Hey Technology Limited
      地址:
      香港九龍旺角塘尾道66號福強工業大廈B座12樓1室
      UNIT 1, 12/F, BLOCK B, FUK KEUNG INDUSTRIAL BUILDING, 66 TONG MI ROAD, MONG KOK, HONG KONG
      電話:2776 3128
      傳真:2511 0091
      電郵:info@heyhey.ltd

      營業時間:
      星期一至星期五 9:00am - 6pm
      星期六 9:00am - 1pm

      http://webmail.heyhey.ltdE-Mail Login

    地圖

  • Download PDF files

    窗口扇1 HH-101說明書 HH-101Catalog 歐盟CE驗證證書 歐盟CE_Report BEC符合證明 EMC驗證證書 EMC驗證_Report EMC Cap106B ASD_GS電氣 ASD_GS冷氣 皂液感應器1 雙沖水閥1 進水閥1 進水口配件1 窗口扇價目表 廁所價目表
